Digital-IC-Lexikon

In diesem Mini-Lexikon finden Sie die Anschlussbelegungen und kurze Beschreibungen zu vielen digitalen ICs der CD4XXX-CMOS-Familie. Da diese Bauteile auch verstärkt in Digital-Schaltungen dieser Homepage vorkommen, helfen diese Seiten auch beim Nachbau der Projekte.

Hinweis: Sämtliche Bilder entstammen der Layout-Software EAGLE, dessen Copyright © bei der Firma CadSoft liegt. Fehlermeldungen gerne per Email.

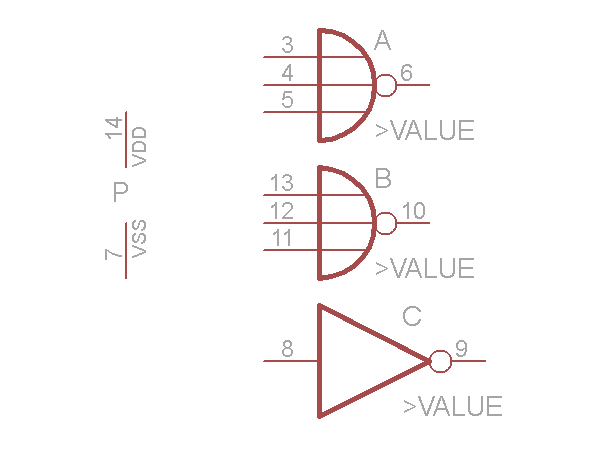

• CD4000



  CD4000: Dual 3-input NOR & INVERTER

• CD4001

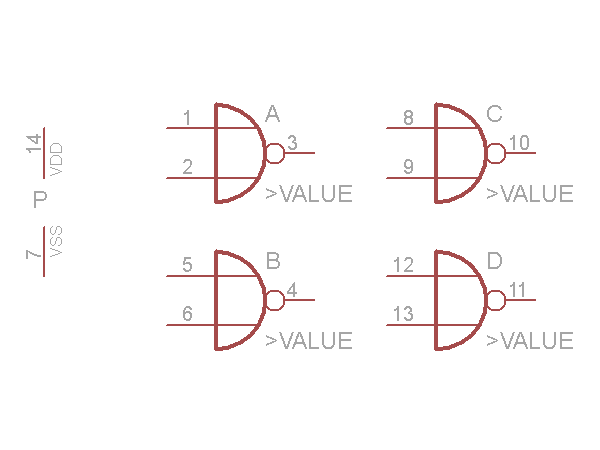

  CD4001: Quad 2-input NOR

• CD4002

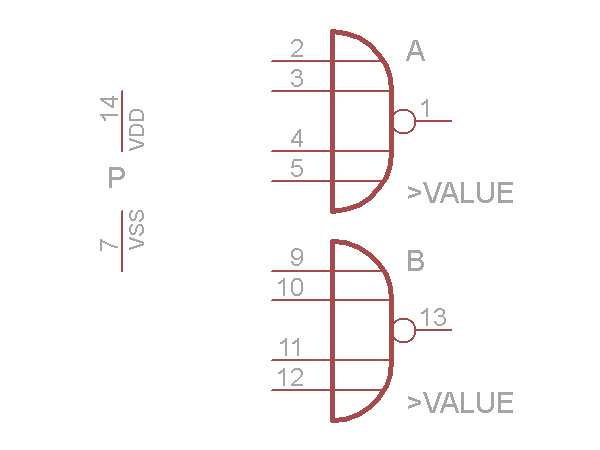

  CD4002: 2-input NOR

• CD4006

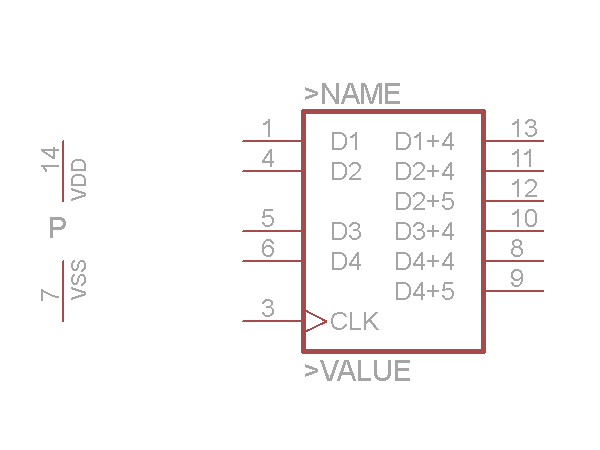

  CD4006: 18-bit static SHIFT REGISTER

• CD4007

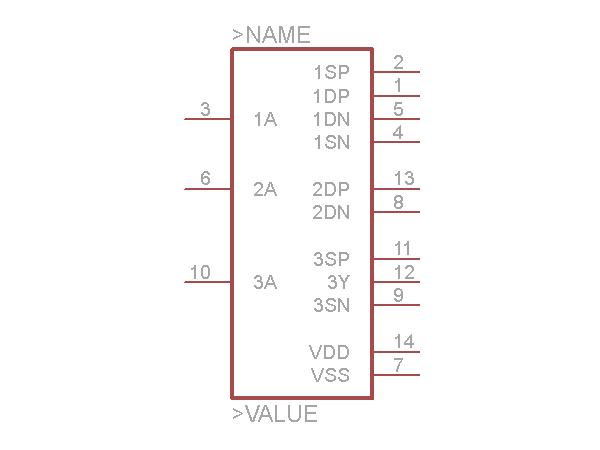

  CD4007: Dual COMPLEMENTARY PAIR plus INVERTER

• CD4008

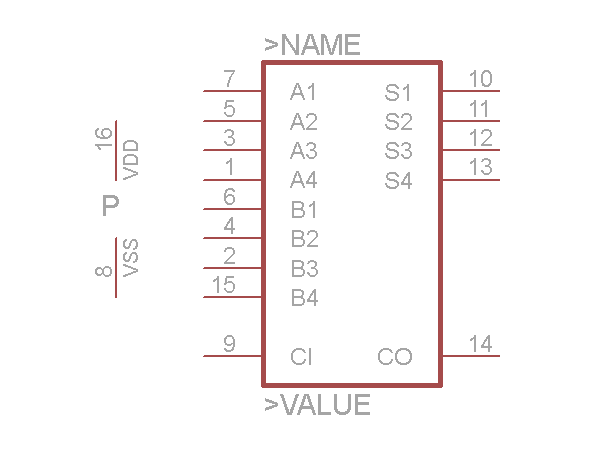

  CD4008: 4-bit full ADDER

• CD4009

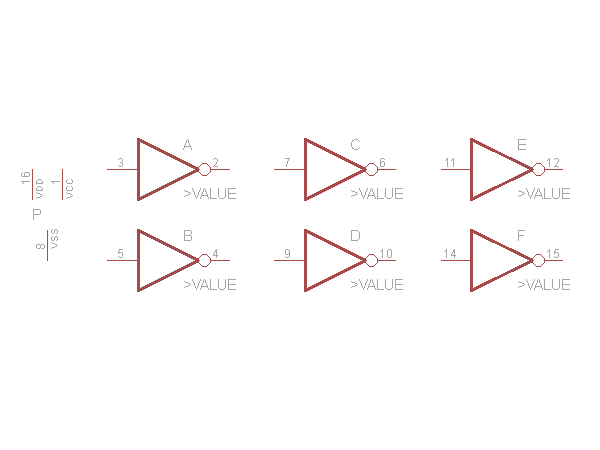

  CD4009: Hex BUFFER, inverting

• CD4010

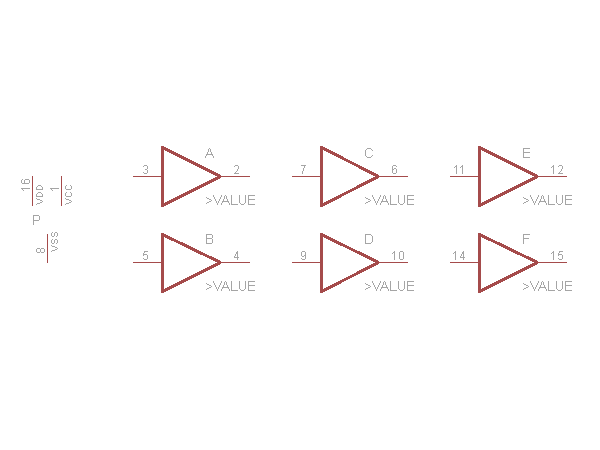

  CD4010: Hex BUFFER, non-inverting

• CD4011

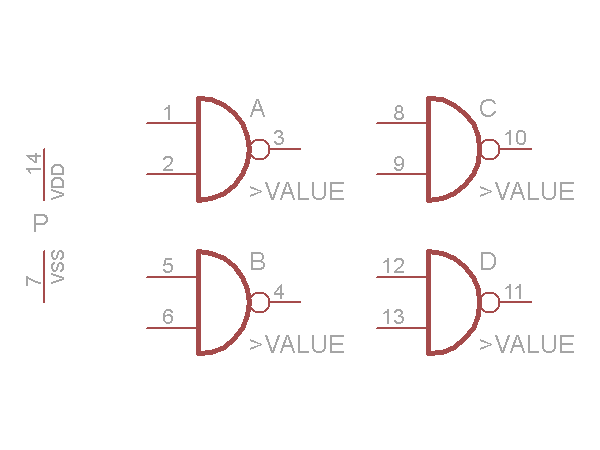

  CD4011: Quad 2-input NAND

• CD4012

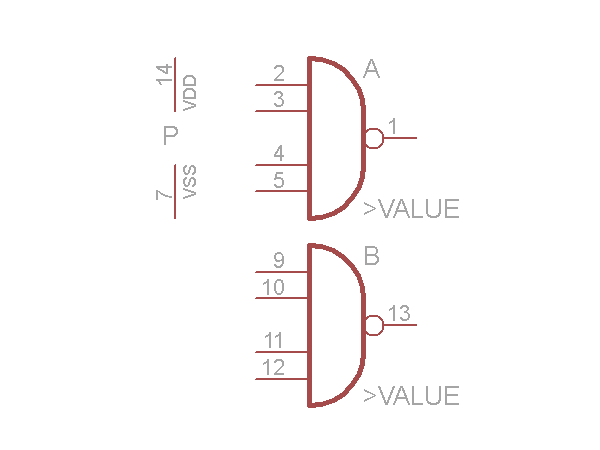

  CD4012: Dual 4-input NAND

• CD4013

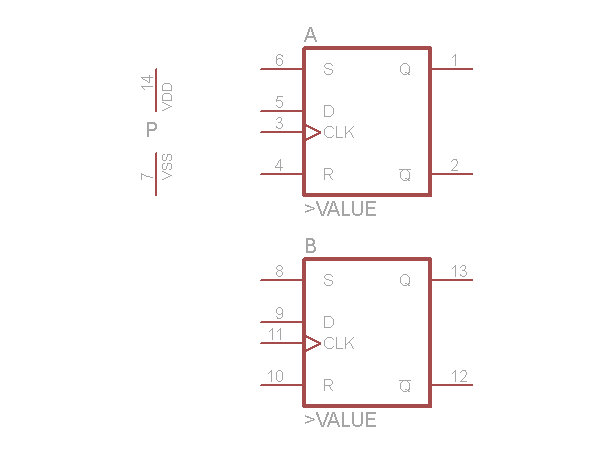

  CD4013: Dual D FLIP FLOP, set / reset

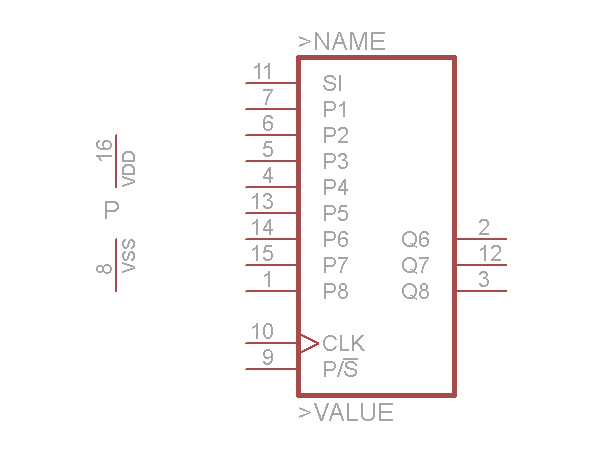

• CD4014



  CD4014: 8-bit static SHIFT REGISTER

• CD4015

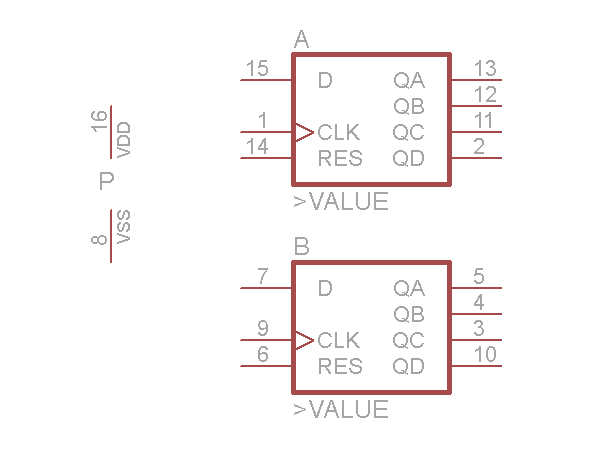

  CD4015: Dual 4-bit static SHIFT REGISTER

• CD4016

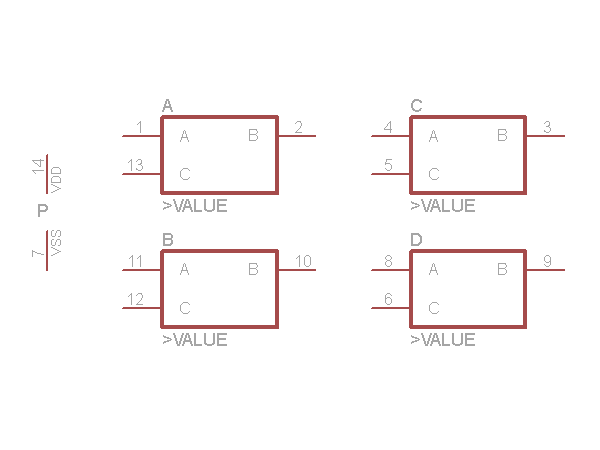

  CD4016: Quad bilateral ANALOG SWITCH

• CD4017

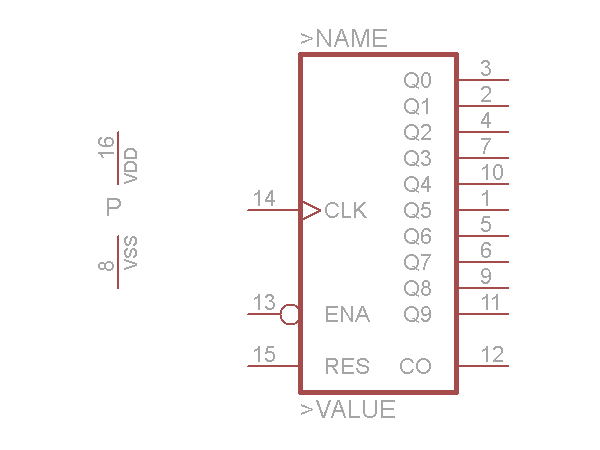

  CD4017: COUNTER / DIVIDER

• CD4018



  CD4018: COUNTER / DIVIDER

• CD4019

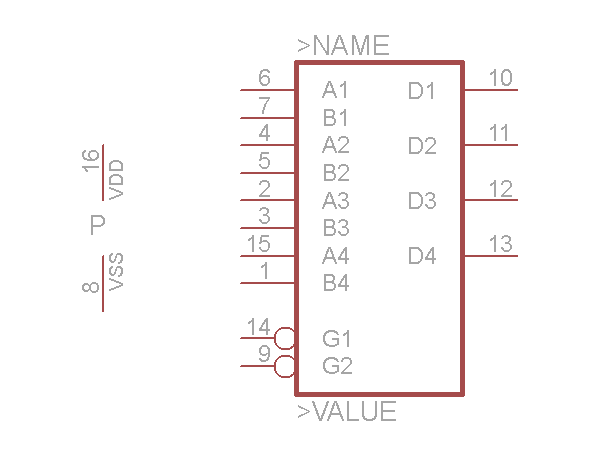

  CD4019: Quad AND-OR select gate

• CD4020

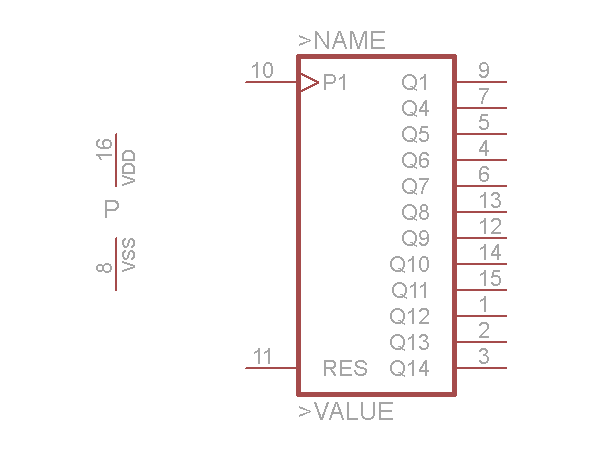

  CD4020: 14-stage binary / ripple COUNTER

• CD4021

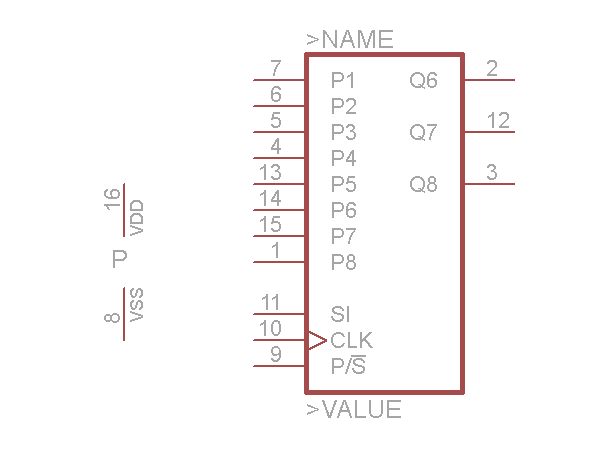

  CD4021: 8-bit static SHIFT REGISTER

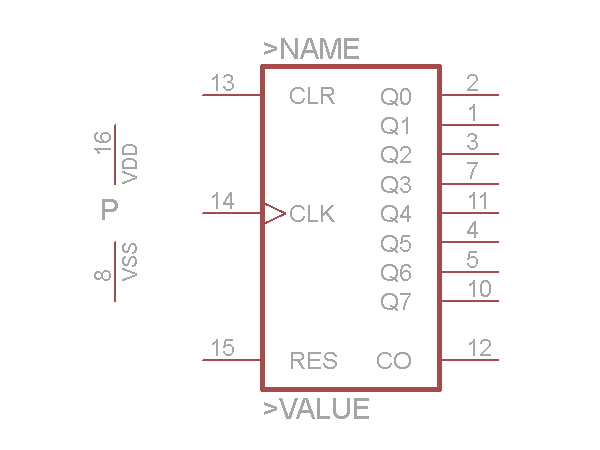

• CD4022



  CD4022: Divide-by 8 COUNTER

• CD4023

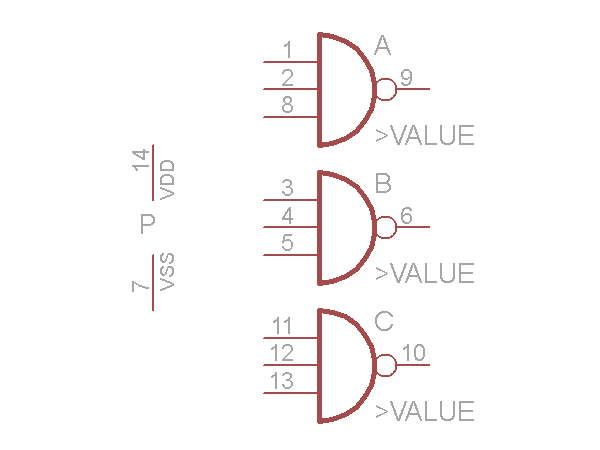

  CD4023: Triple 3-input NAND

• CD4024

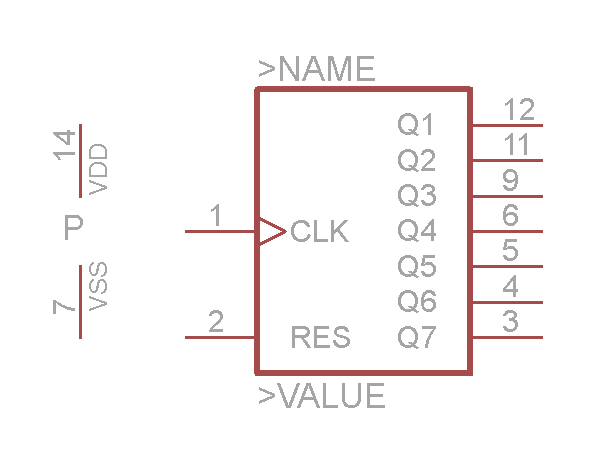

  CD4024: 7-stage binary / ripple COUNTER

• CD4025

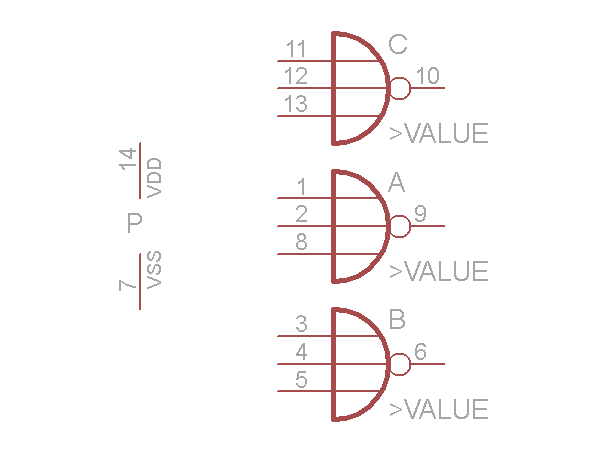

  CD4025: Triple 3-input NOR

• CD4026

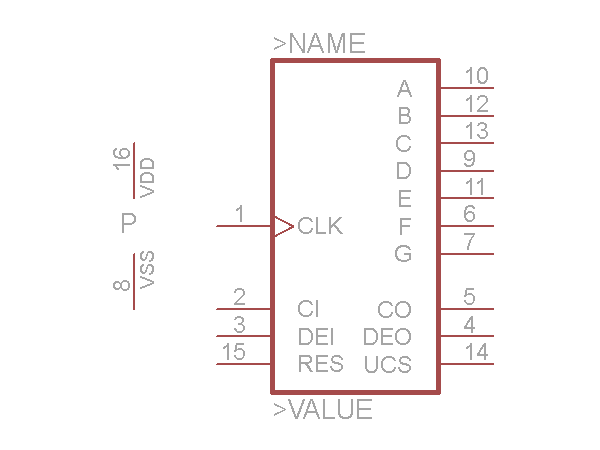

  CD4026: Decade COUNTER / DIVIDER, 7-seg. outputs

• CD4027

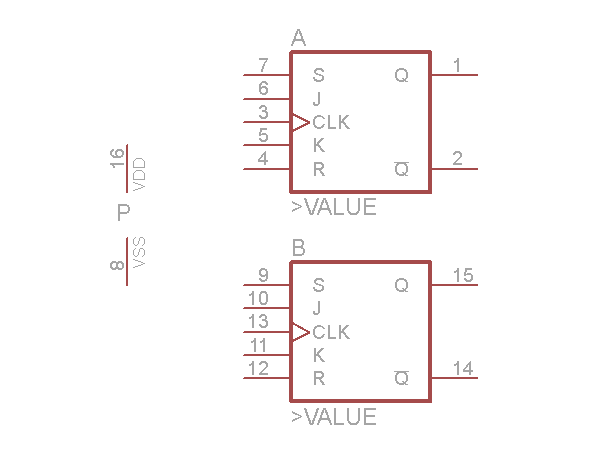

  CD4027: Dual JK FLIP FLOP

• CD4028

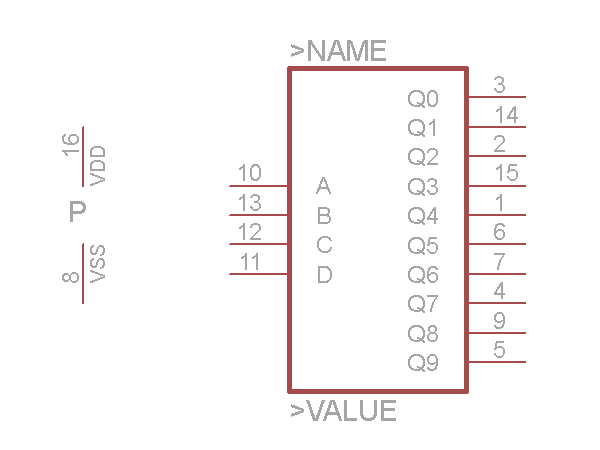

  CD4028: BCD to decimal DECODER

• CD4029

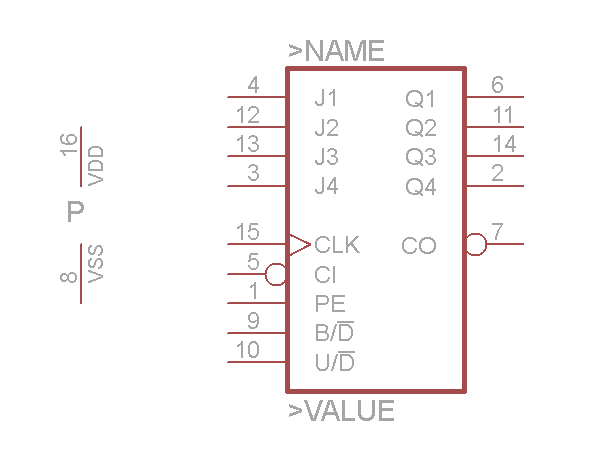

  CD4029: Binary / decimal up / down COUNTER

• CD4030

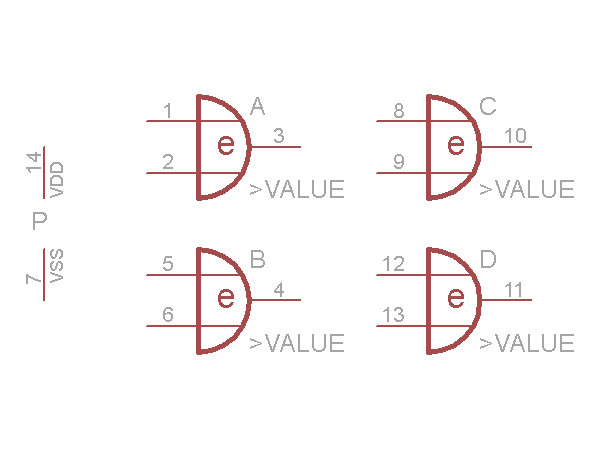

  CD4030: QUAD XOR

• CD4031

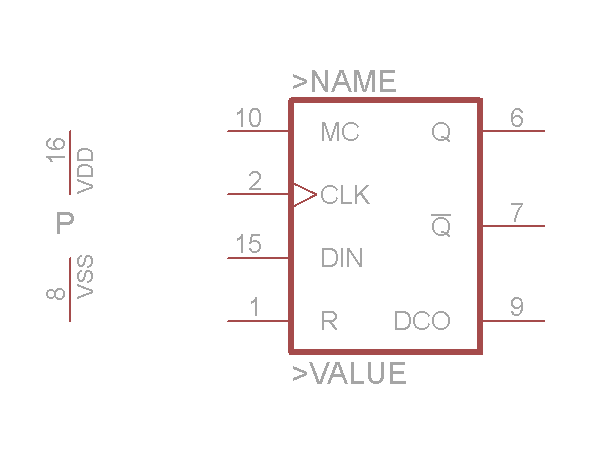

  CD4031: 64-stage static SHIFT REGISTER

• CD4032

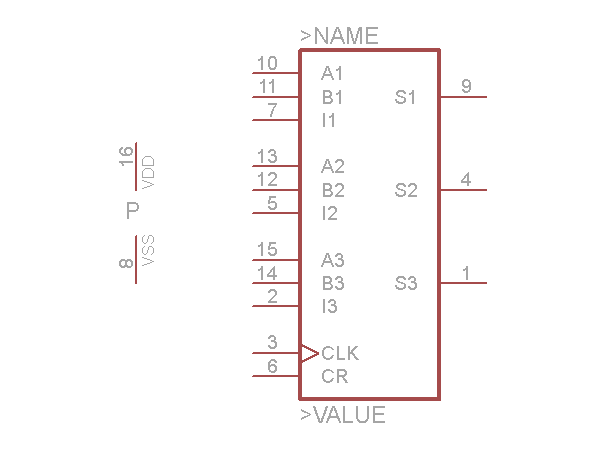

  CD4032: Triple serial ADDER, positive logic

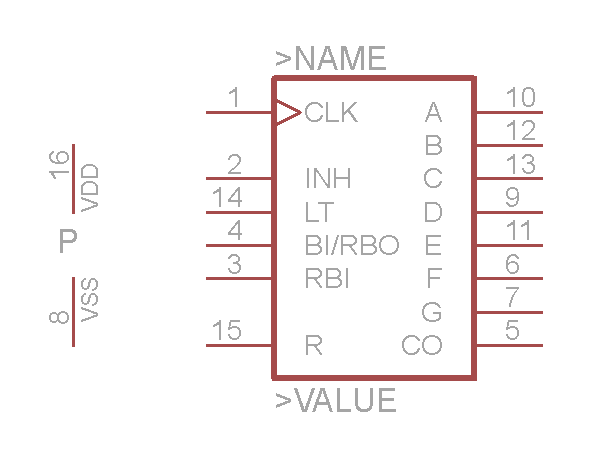

• CD4033



  CD4033: Decade COUNTER / DIVIDER, 7-seg. outputs

• CD4034

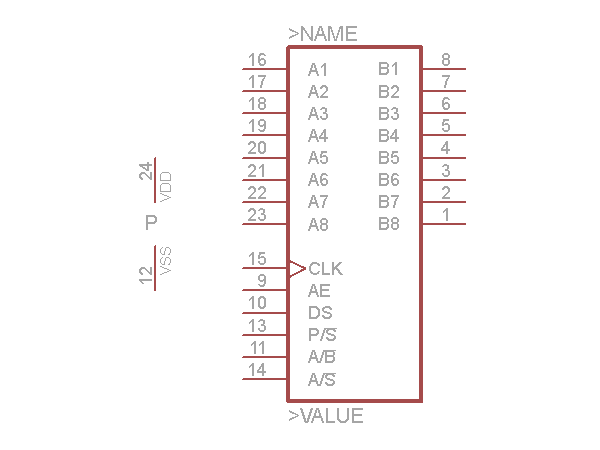

  CD4034: 8-bit bidirectional BUS REGISTER

• CD4035

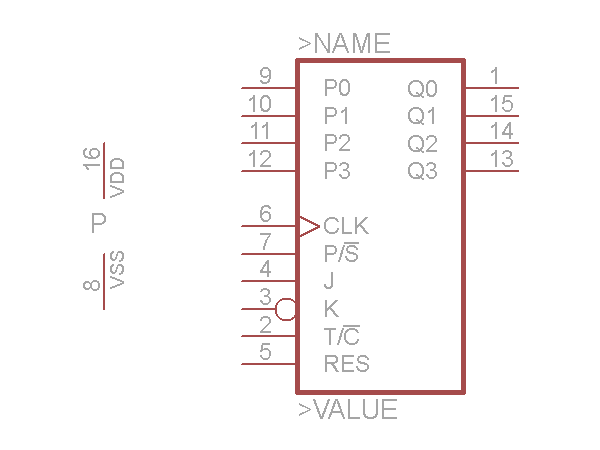

  CD4035: 4-bit parallel in / out SHIFT REGISTER

• CD4038

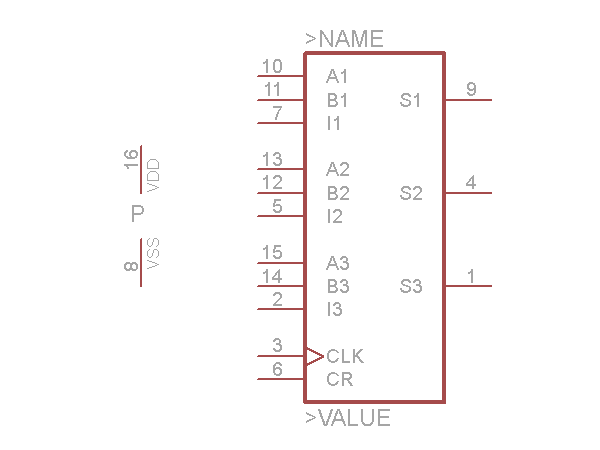

  CD4038: Triple serial ADDER, negative logic

• CD4040

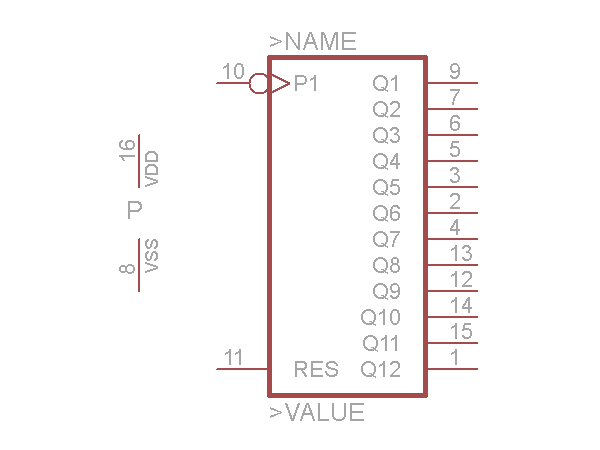

  CD4040: 12-stage binary / ripple COUNTER

• CD4041

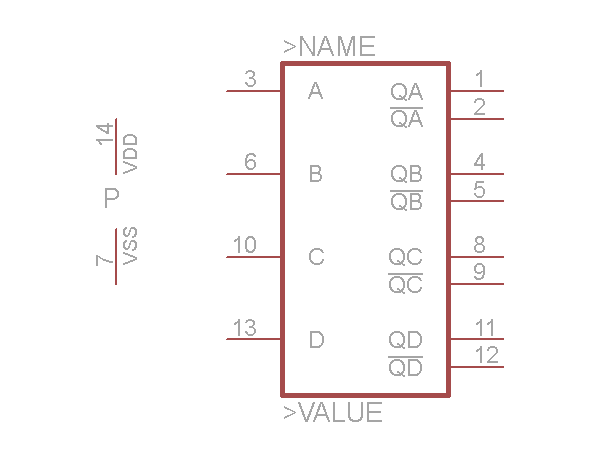

  CD4041: Quad true / complement BUFFER

• CD4042

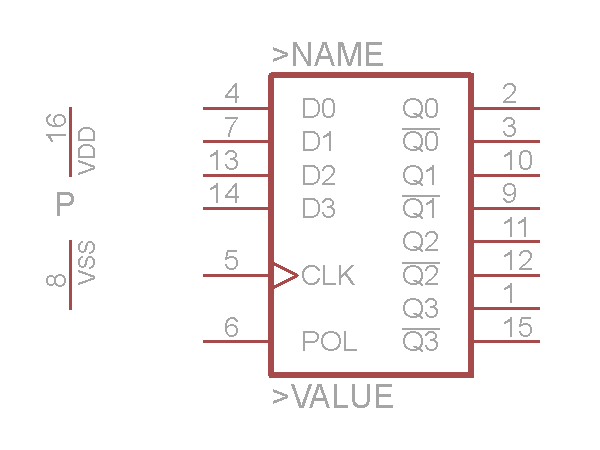

  CD4042: Quad clocked D LATCH

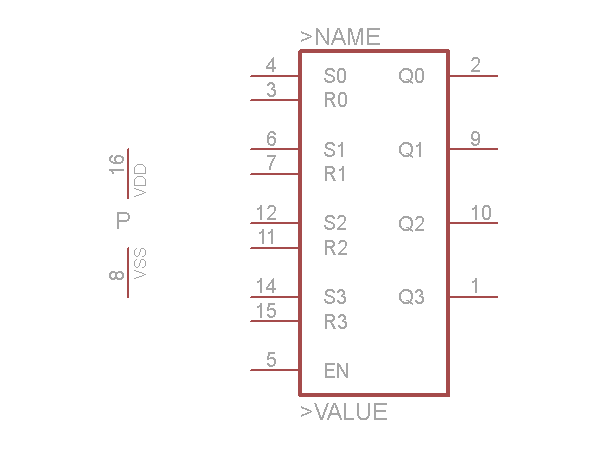

• CD4043



  CD4043: Quad 3-state NOR R/S LATCH

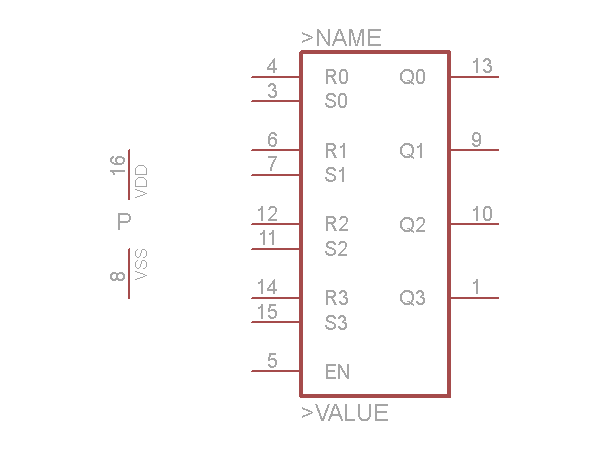

• CD4044



  CD4044: Quad 3-state NAND R/S LATCH

• CD4045



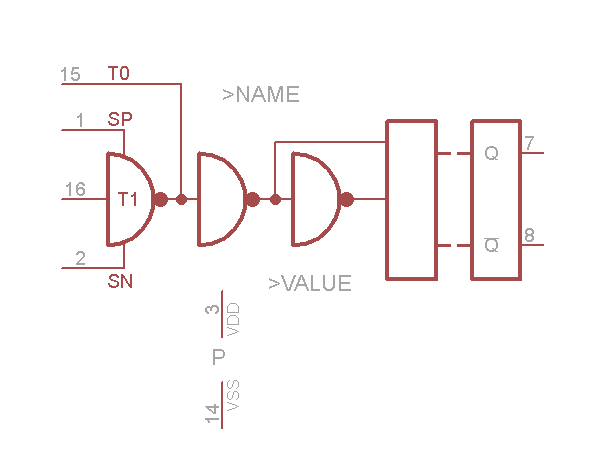

  CD4045: 21-stage COUNTER

• CD4046

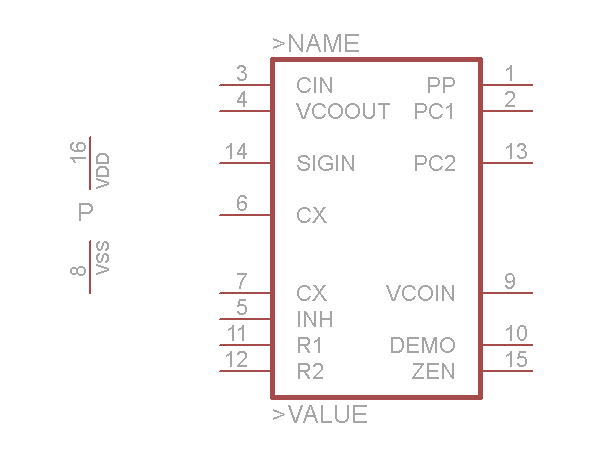

  CD4046: Micropower PLL

• CD4047

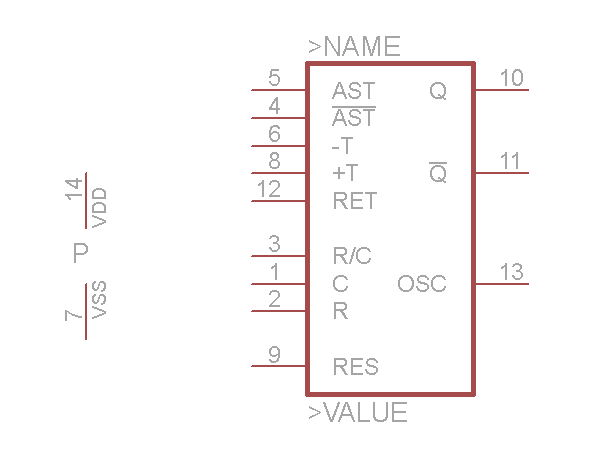

  CD4047: LP monostable / astable MULTIVIBRATOR

• CD4048



  CD4048: Expandable 8-input GATE

• CD4049

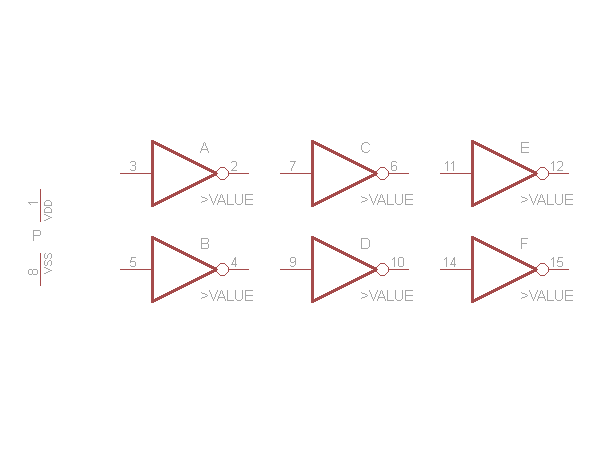

  CD4049: Hex inverting BUFFER

• CD4050

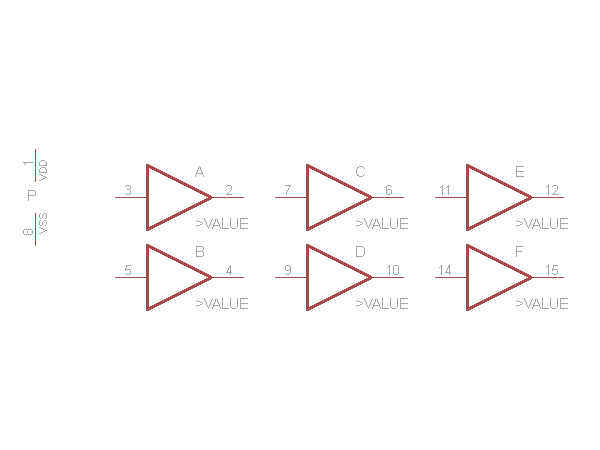

  CD4050: Hex non-inverting BUFFER

• CD4051

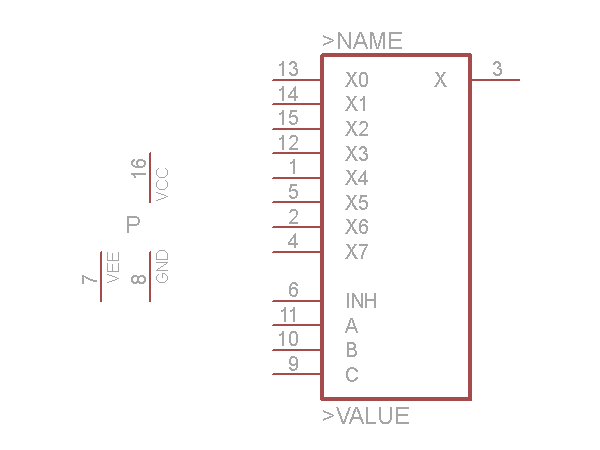

  CD4051: 8-channel ANALOG MULTIPLEXER

• CD4052

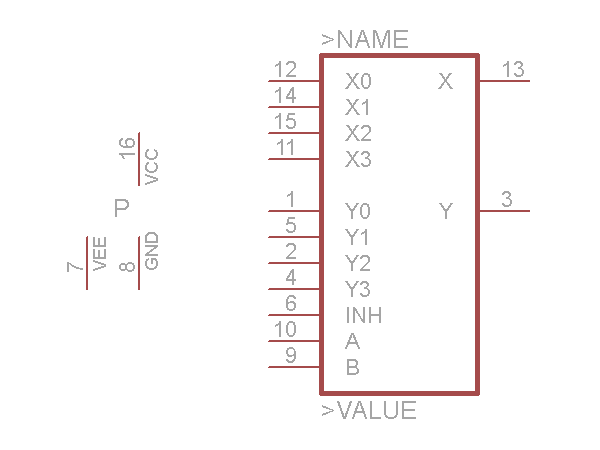

  CD4052: Dual 4-channel ANALOG MULTIPLEXER

• CD4053

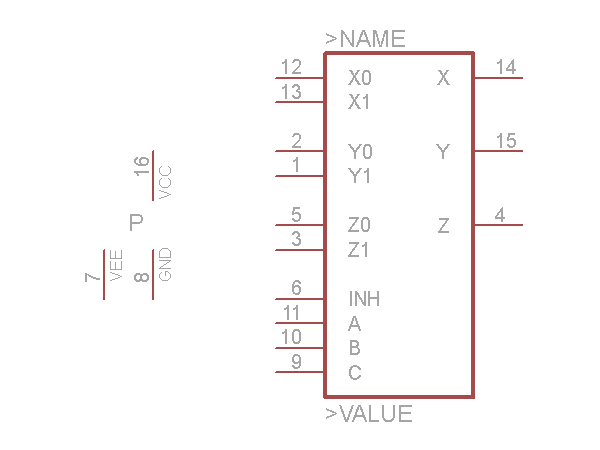

  CD4053: Triple 2-channel ANALOG MULTIPLEXER

• CD4055

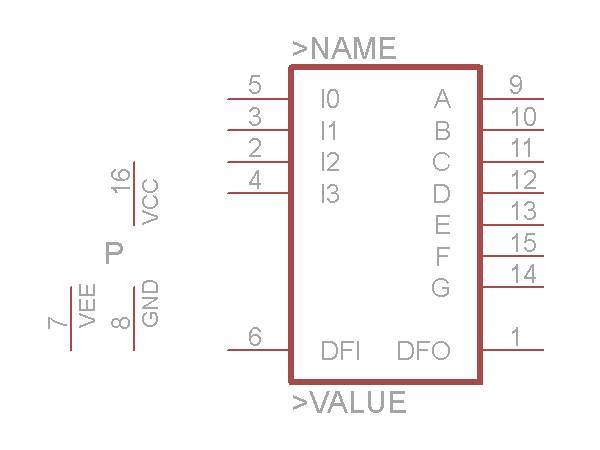

  CD4055: BCD to 7-segment LCD DRIVER

• CD4056

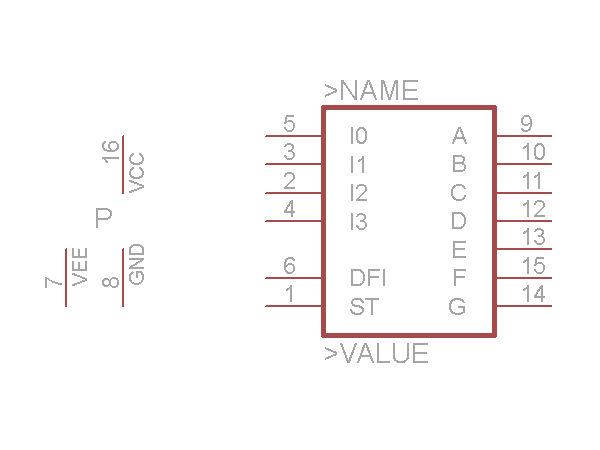

  CD4056: BCD to 7-segment LCD DECODER / DRIVER

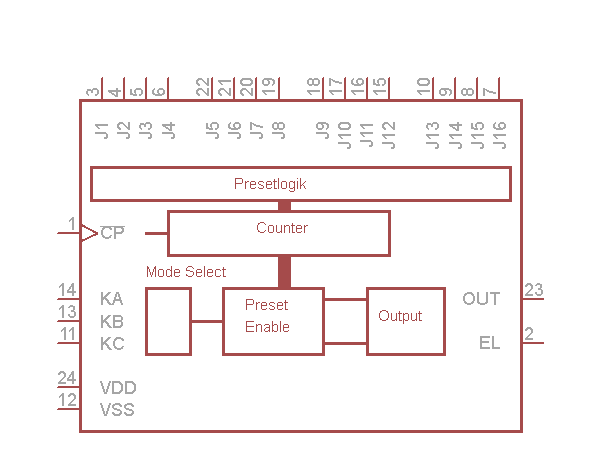

• CD4059



  CD4059: Divide by N COUNTER

• CD4060



  CD4060: 14-stage binary / ripple COUNTER

• CD4063

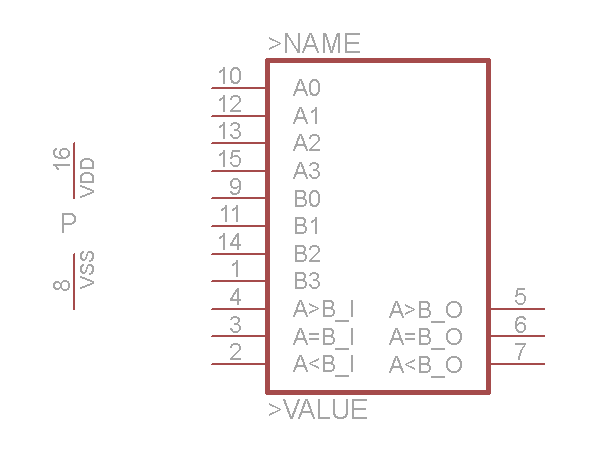

  CD4063: 4-bit magnitude COMPARATOR

• CD4066

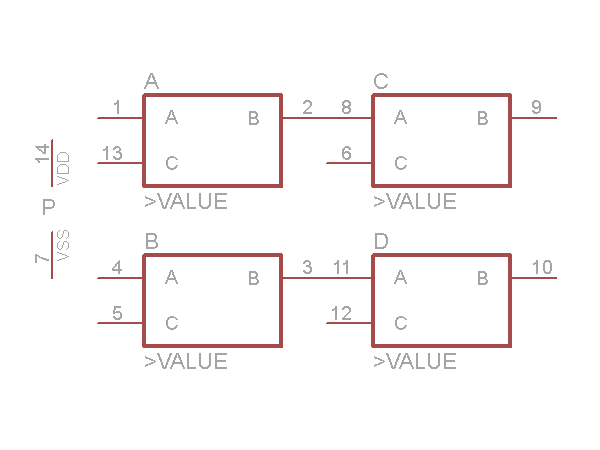

  CD4066: Quad bilateral ANALOG SWITCH

• CD4067

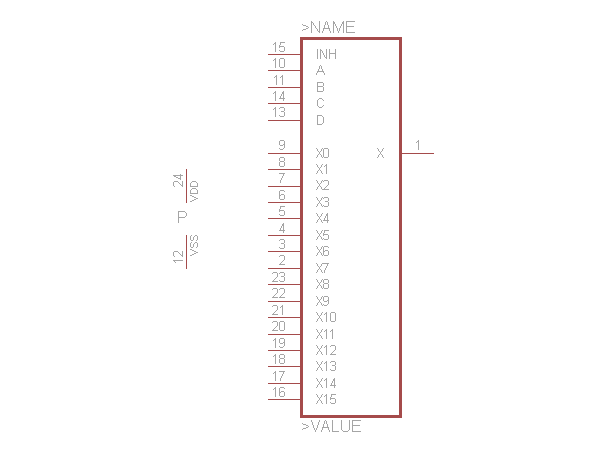

  CD4067: 16-channel ANALOG MULTIPLEXER

• CD4068

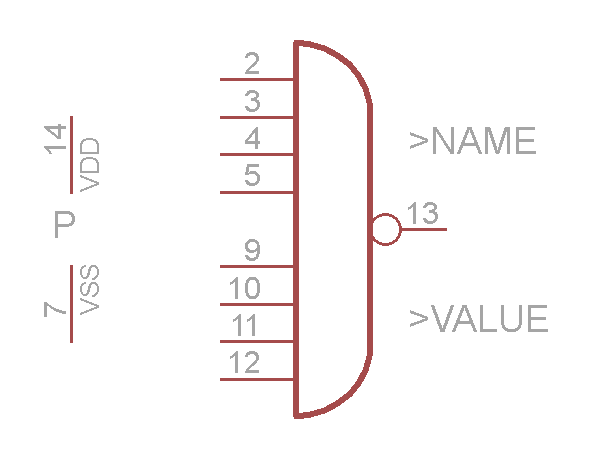

  CD4068: 8-input NAND

• CD4069

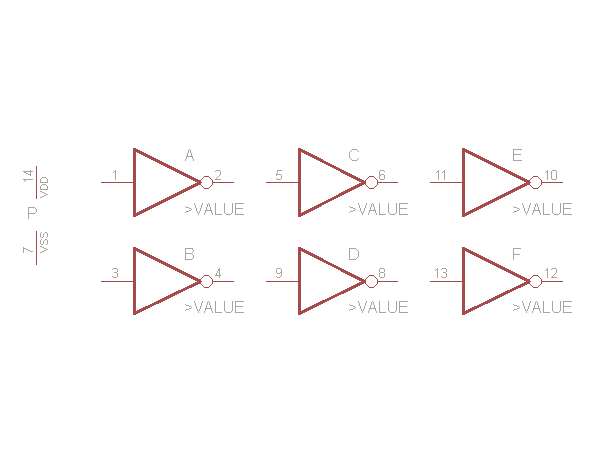

  CD4069: Hex INVERTER

• CD4070

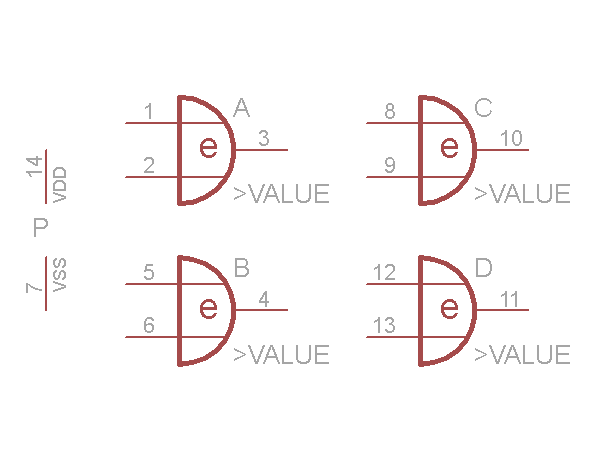

  CD4070: Quad 2-input XOR

• CD4071

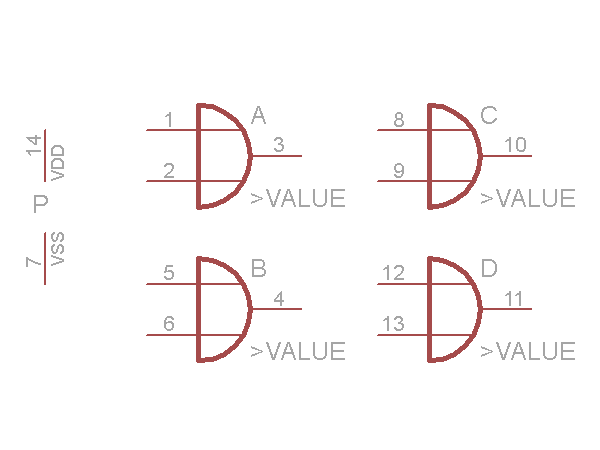

  CD4071: Quad 2-input OR

• CD4072

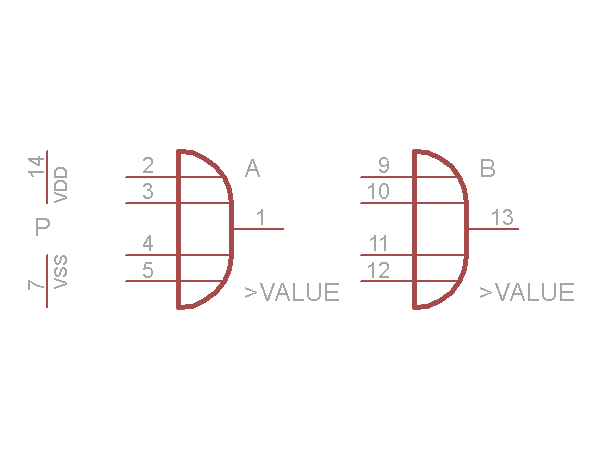

  CD4072: Dual 4-input OR

• CD4073

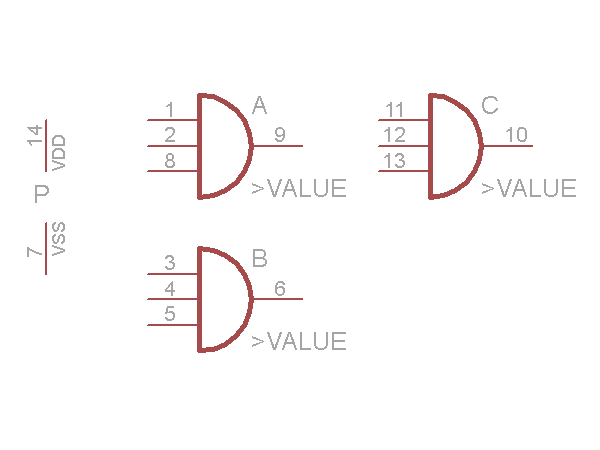

  CD4073: Triple 3-input AND

• CD4075

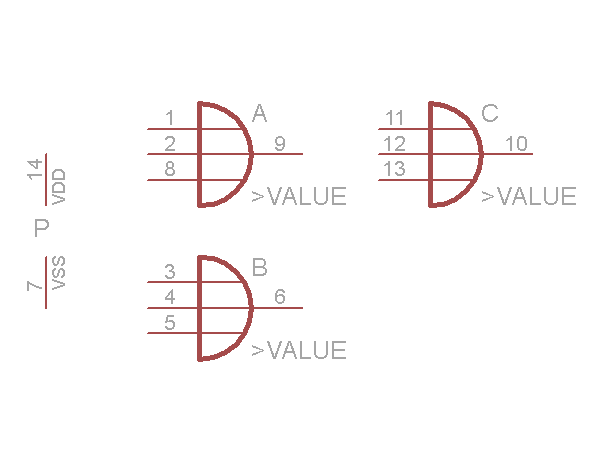

  CD4075: Triple 3-input OR

• CD4076

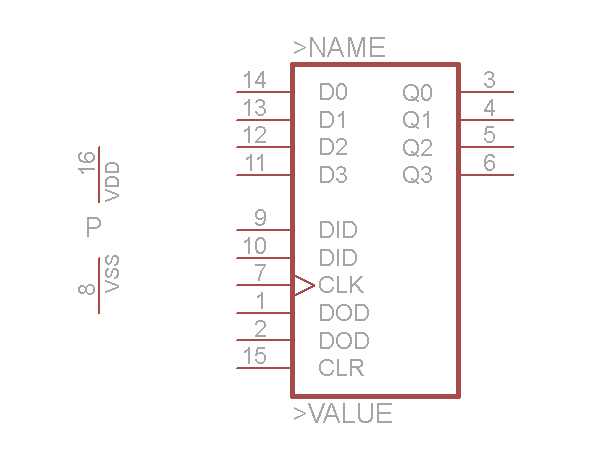

  CD4076: Quad D-type REGISTER

• CD4077

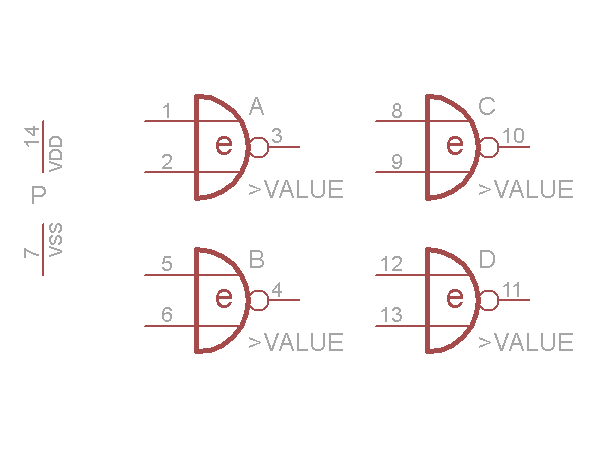

  CD4077: Quad XNOR

• CD4078

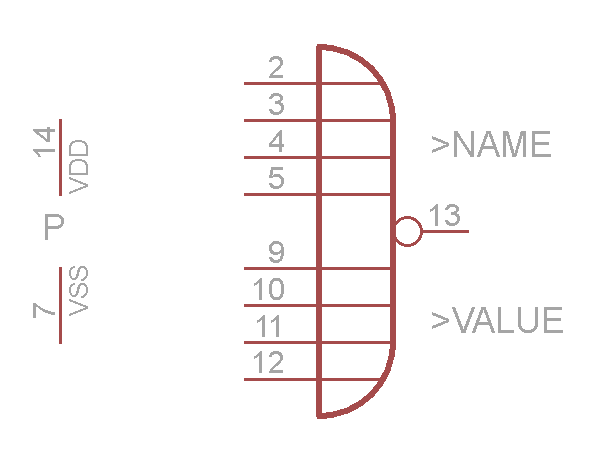

  CD4078: 8-input NOR

• CD4081

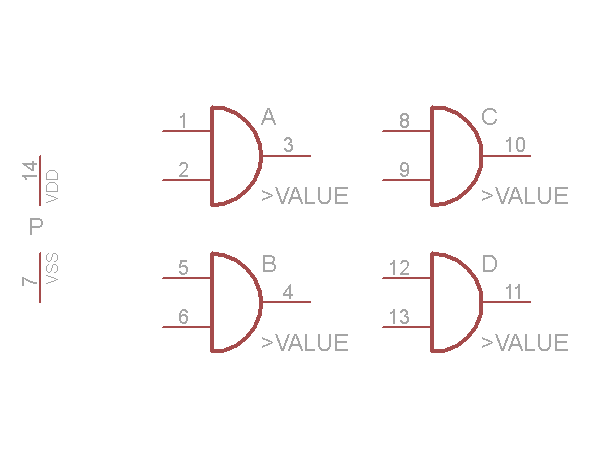

  CD4081: Quad 2-input AND

• CD4082

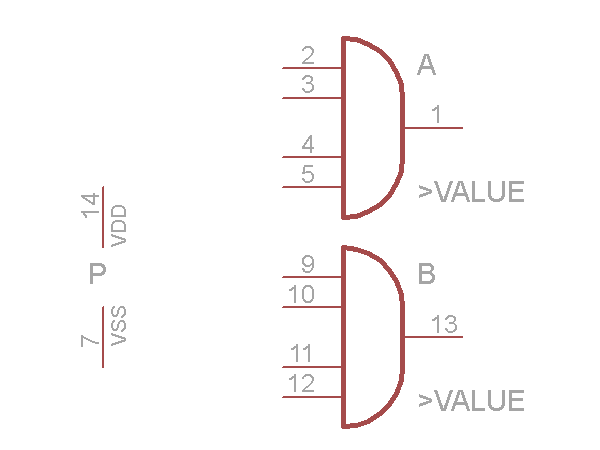

  CD4082: Dual 4-input AND

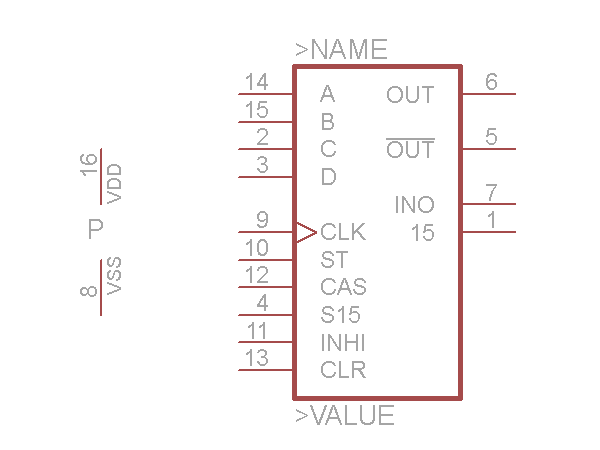

• CD4089



  CD4089: Binary rate MULTIPLIER

• CD4093

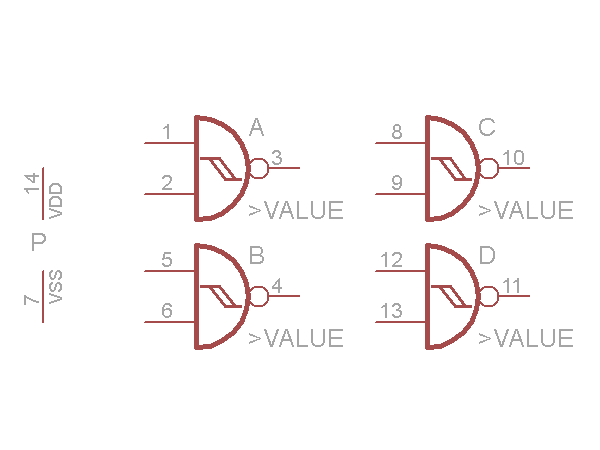

  CD4093: Quad 2-input NAND SCHMITT TRIGGER

• CD4094

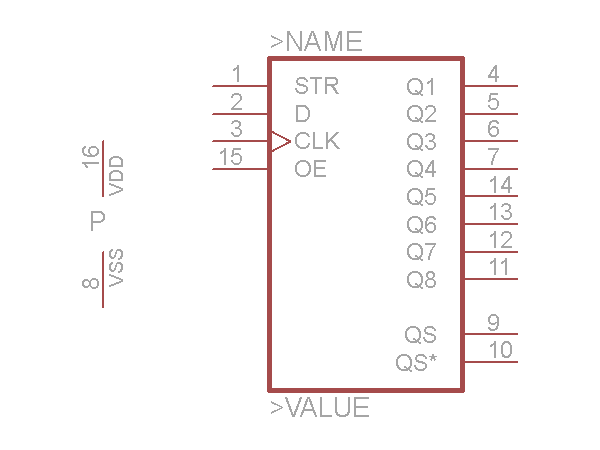

  CD4094: 8-bit SHIFT / STORE REGISTER, tri-state

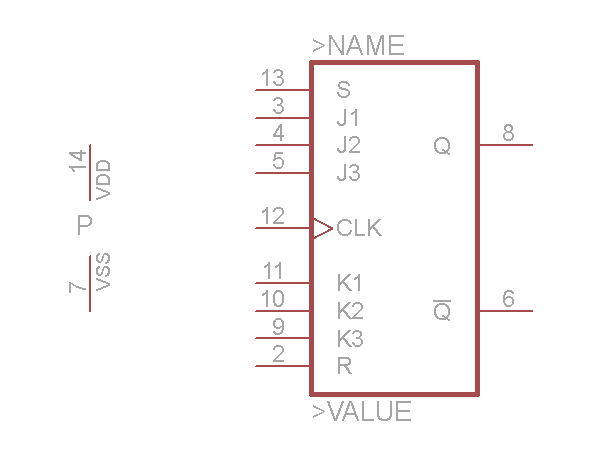

• CD4095



  CD4095: Non-inverting JK master slave FLIP FLOP

• CD4096

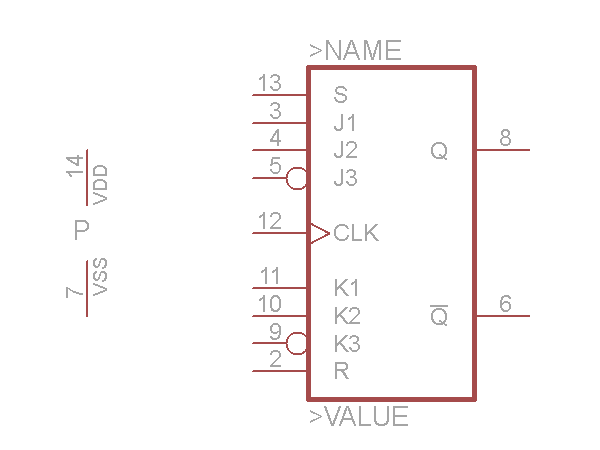

  CD4096: Inverting gated JK master slave FLIP FLOP

• CD4097

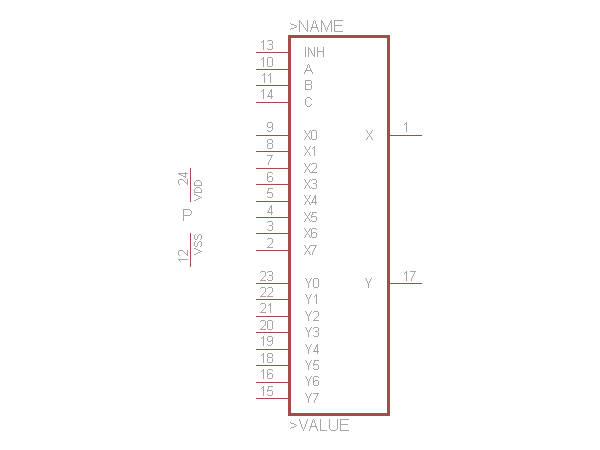

  CD4097: Dual 8-channel ANALOG MULTIPLEXER

• CD4098

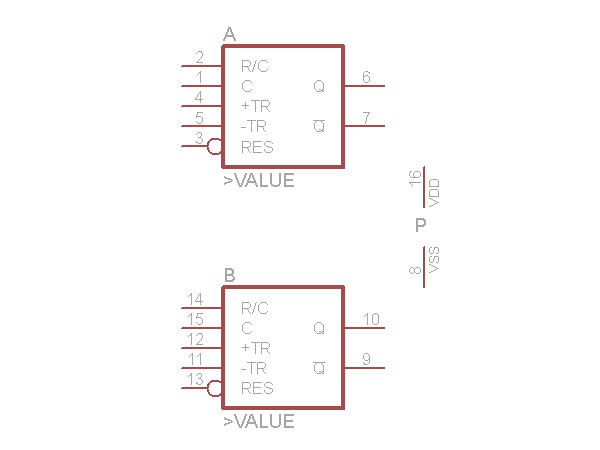

  CD4098: Dual monostable MULTIVIBRATOR

• CD4099

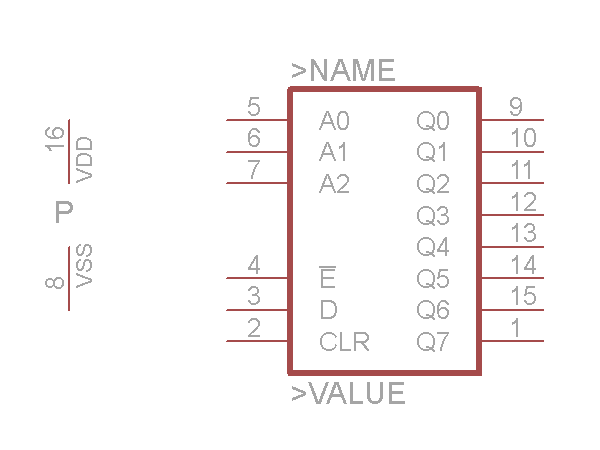

  CD4099: 8-bit addressable LATCH

• CD4160

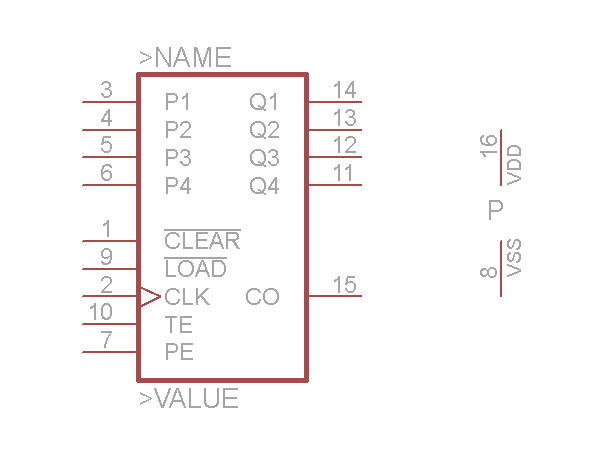

  CD4160: Synchronous presettable BCD COUNTER

• CD4161

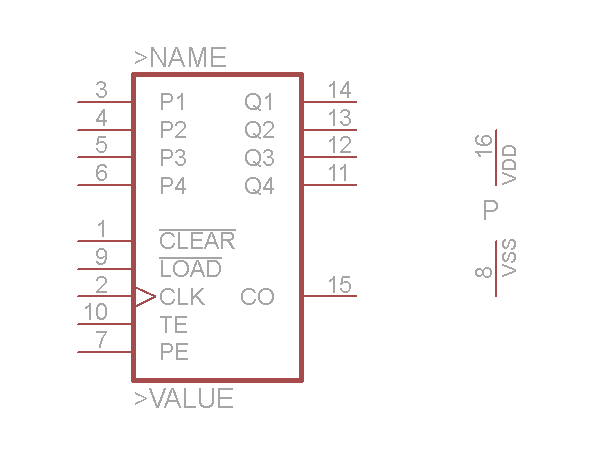

  CD4161: Synchronous presettable 4-bit binary COUNTER

• CD4162



  CD4162: Synchronous presettable BCD COUNTER

• CD4163

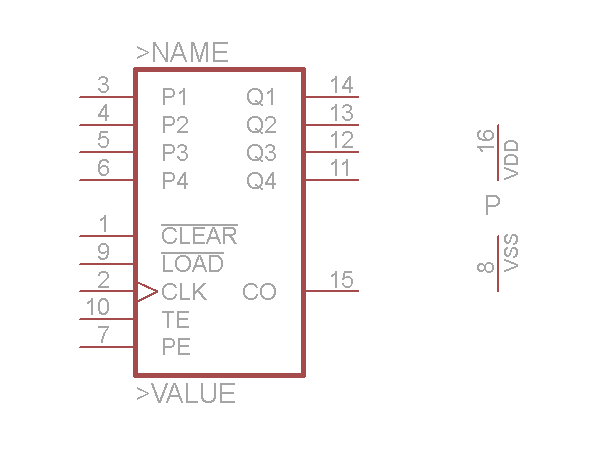

  CD4163: Synchronous presettable 4-bit binary COUNTER

• CD4174

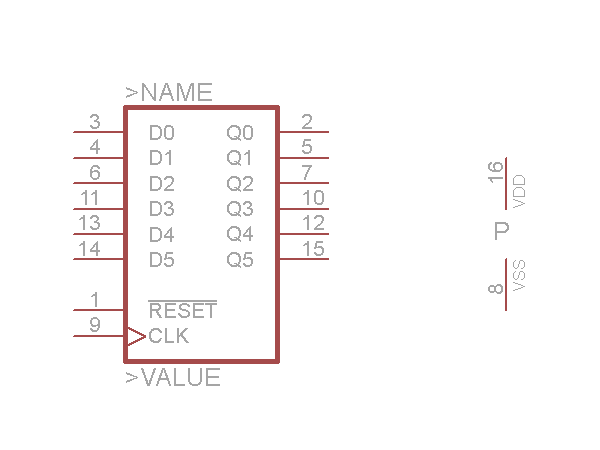

  CD4174: Hex D FLIP FLOP

• CD4175

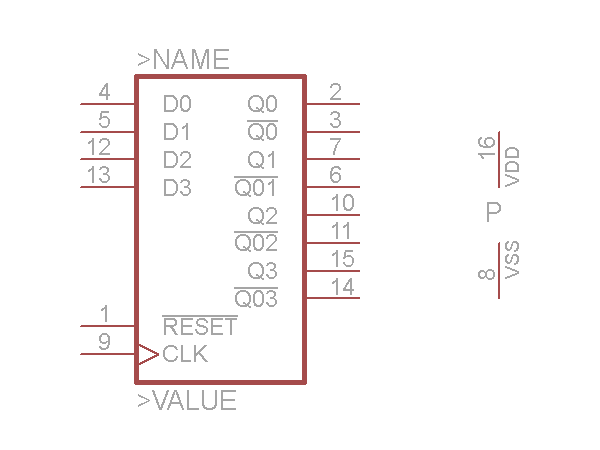

  CD4175: Quad D FLIP FLOP

• CD4194

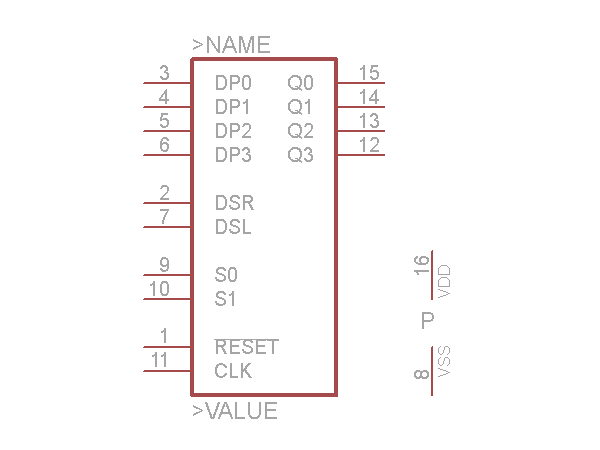

  CD4194: 4-bit universal SHIFT REGISTER

• CD4415

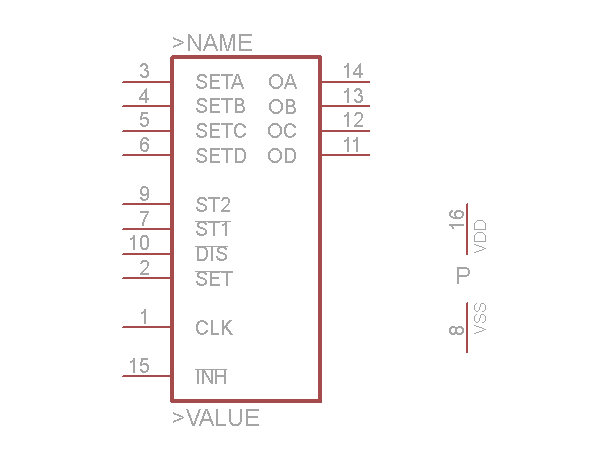

  CD4415: Quad precision TIMER / DIVIDER

• CD4490

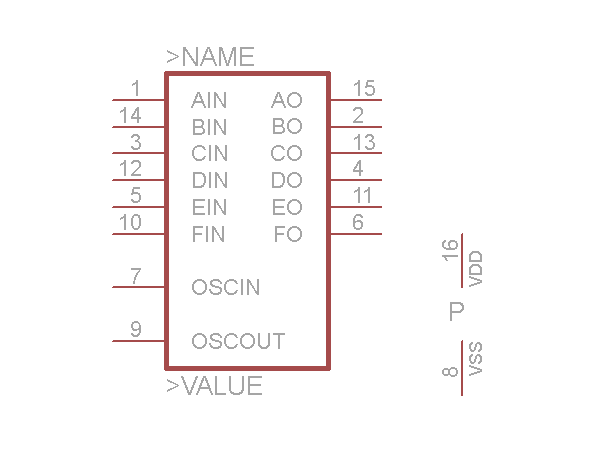

  CD4490: Hex contact BOUNCE ELIMINATOR

• CD40106

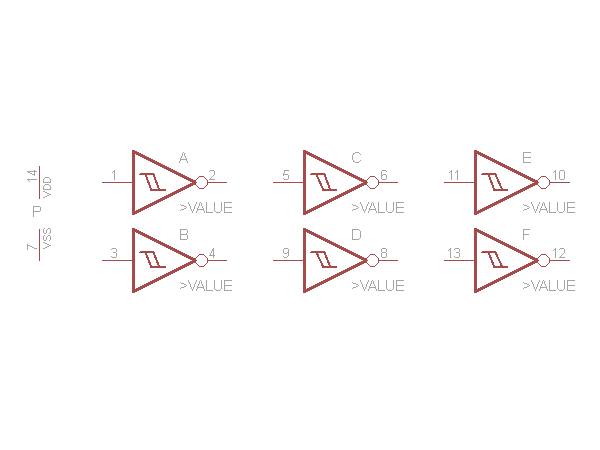

  CD40106: Hex SCHMITT TRIGGER

• CD40193

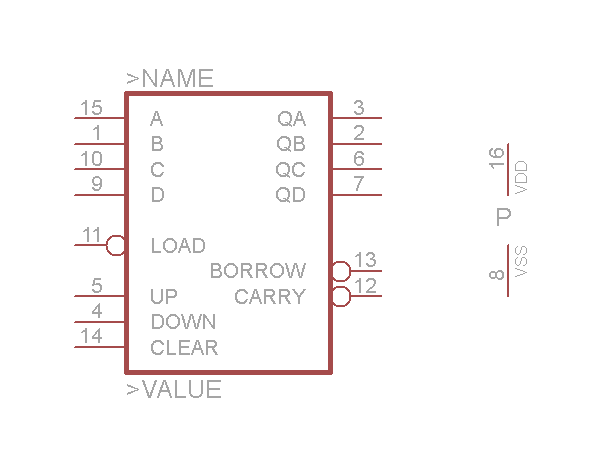

  CD40193: Binary up / down COUNTER

• CD4500

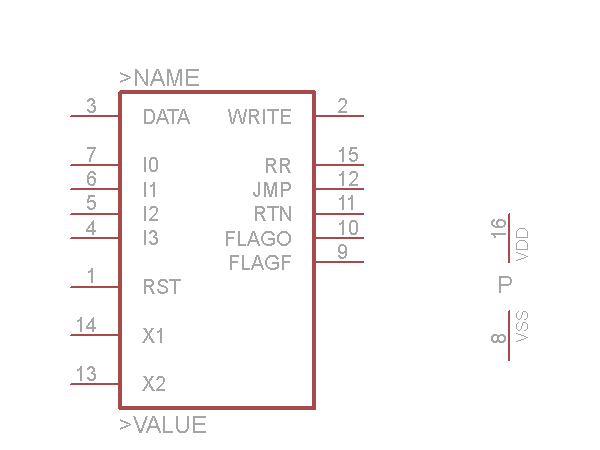

  CD4500: Industrial CONTROL UNIT

• CD4501

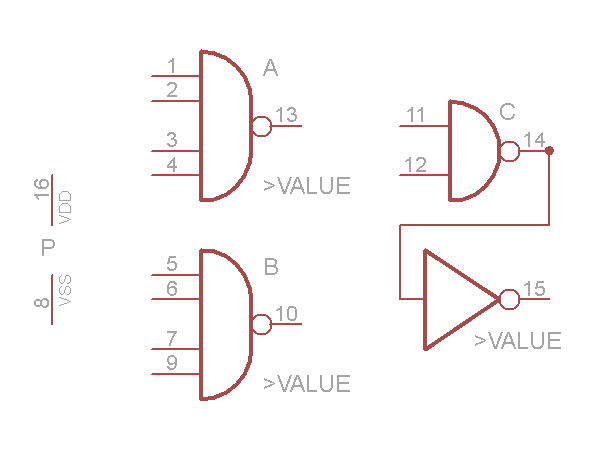

  CD4501: NAND / NOR / OR

• CD4502

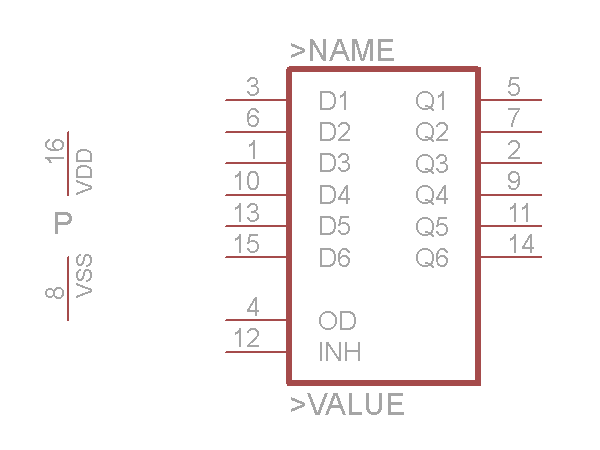

  CD4502: Stored hex INVERTER / BUFFER

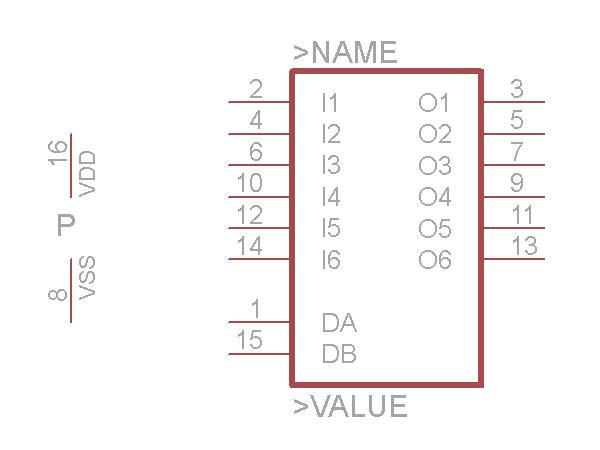

• CD4503



  CD4503: Tri-state hex BUFFER

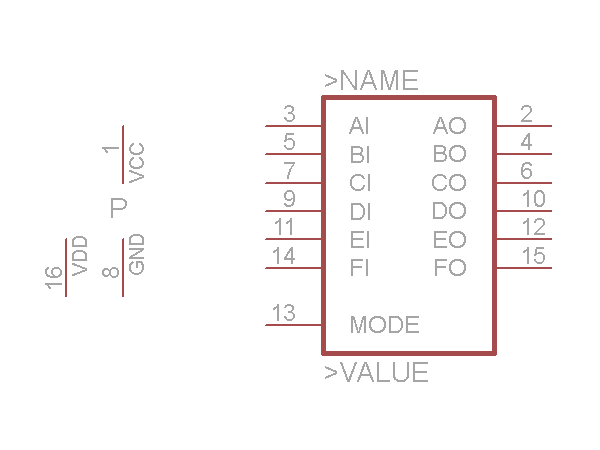

• CD4504



  CD4504: TTL or CMOS to CMOS LEVEL SHIFTER

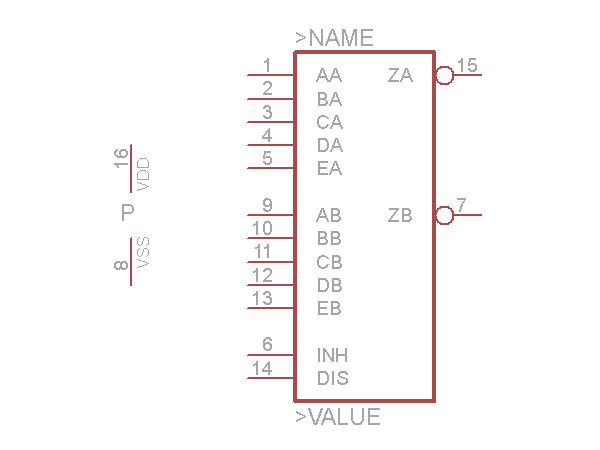

• CD4506



  CD4506: Dual expandable AND / OR / INVERT

• CD4508

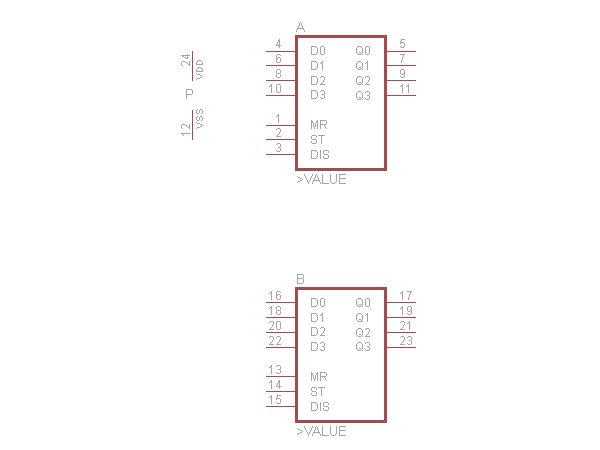

  CD4508: Dual 4-bit LATCH

• CD4510

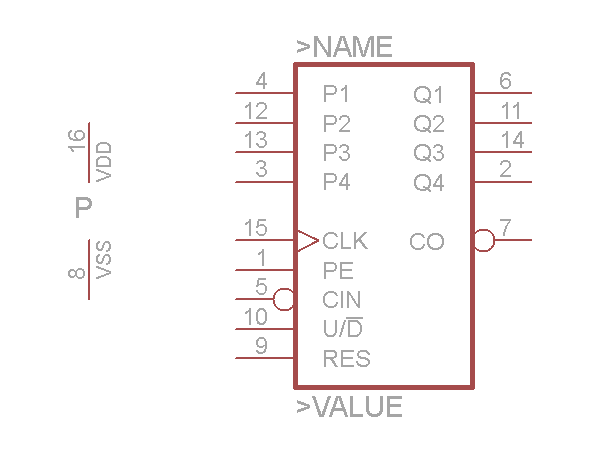

  CD4510: presettable BCD up / down COUNTER

• CD4511

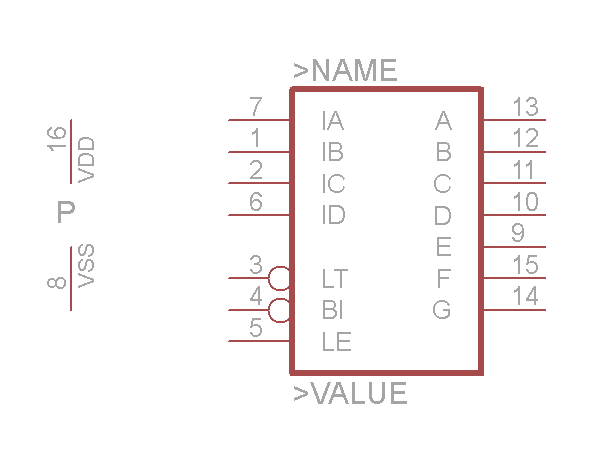

  CD4511: BCD to 7-segment LATCH / DECODER / DRIVER

• CD4512

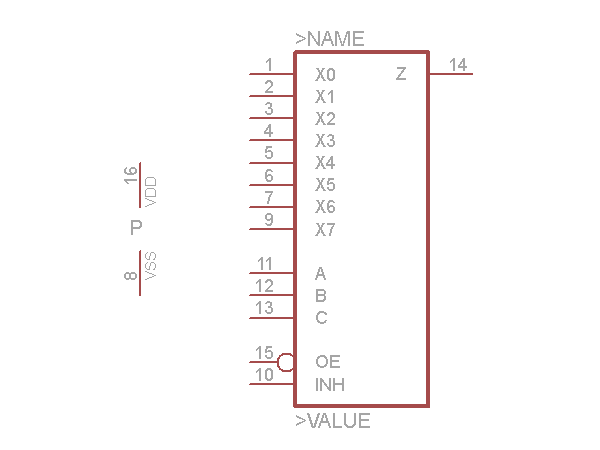

  CD4512: 8-channel DATA SELECTOR

• CD4513

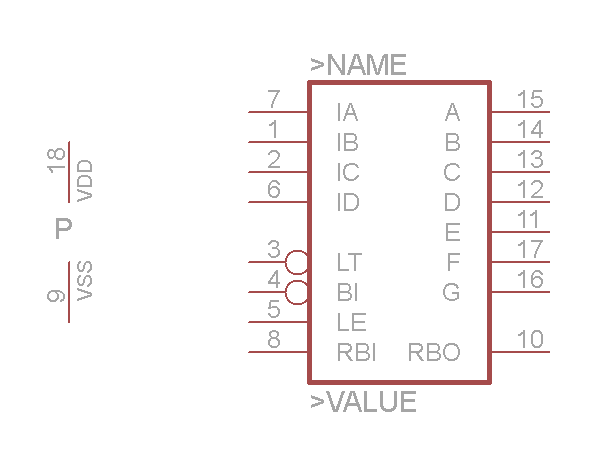

  CD4513: BCD to 7-segment LATCH / DECODER / DRIVER

• CD4514

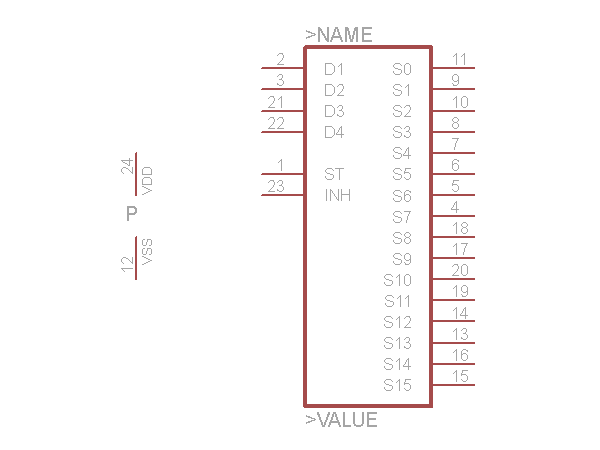

  CD4514: 4-bit latch 4-16 line DECODER

• CD4515

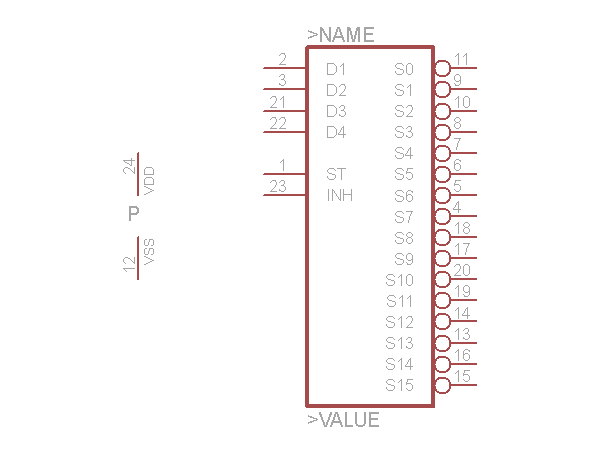

  CD4515: 5-bit latch 4-16 line DECODER

• CD4516

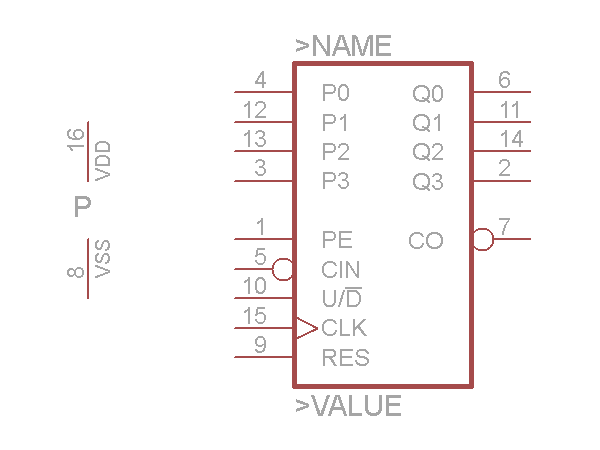

  CD4516: Binary up / down COUNTER

• CD4517

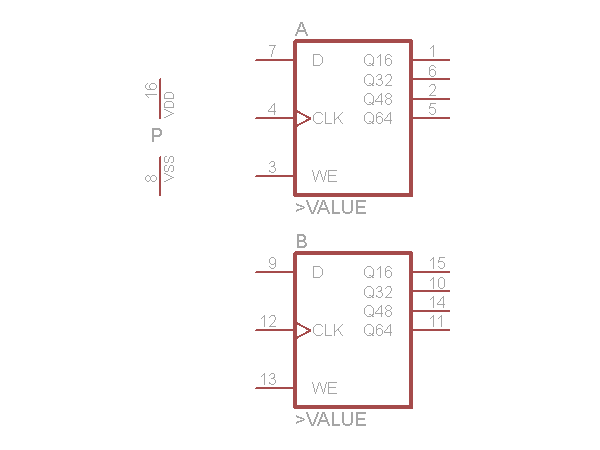

  CD4517: Dual 64-stage static REGISTER

• CD4518

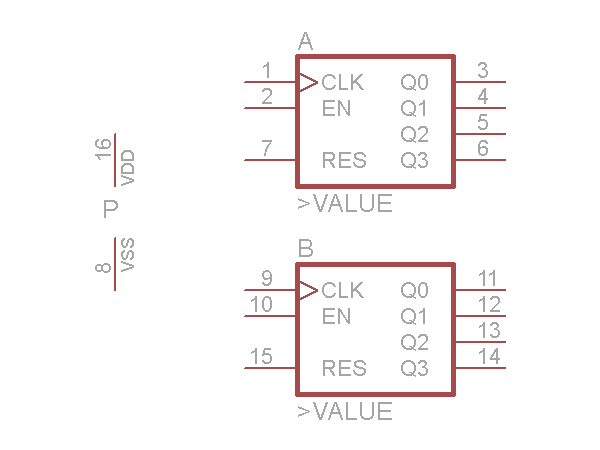

  CD4518: Dual BCD up COUNTER

• CD4519

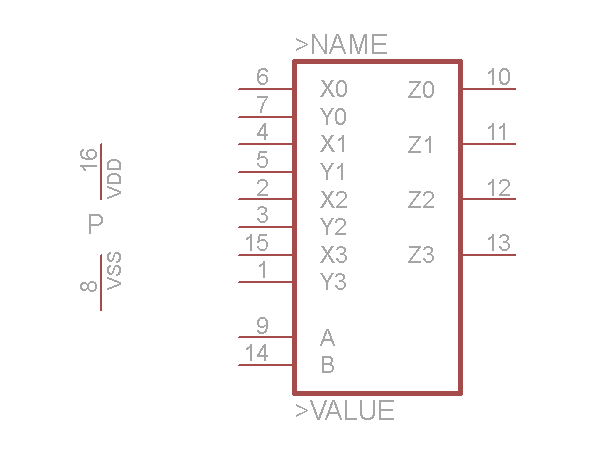

  CD4519: 4-bit AND / OR SELECTOR

• CD4520

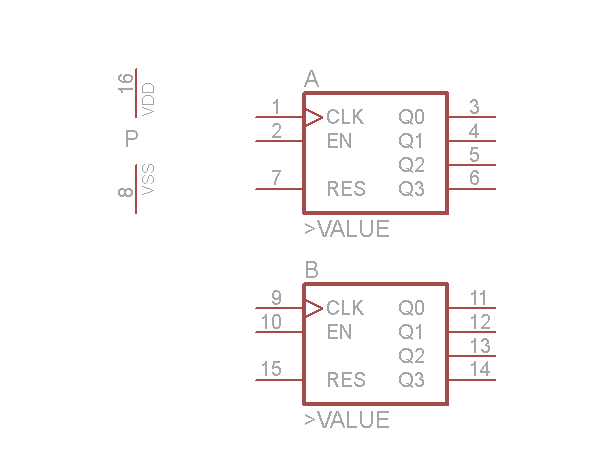

  CD4520: Dual binary up COUNTER

• CD4521

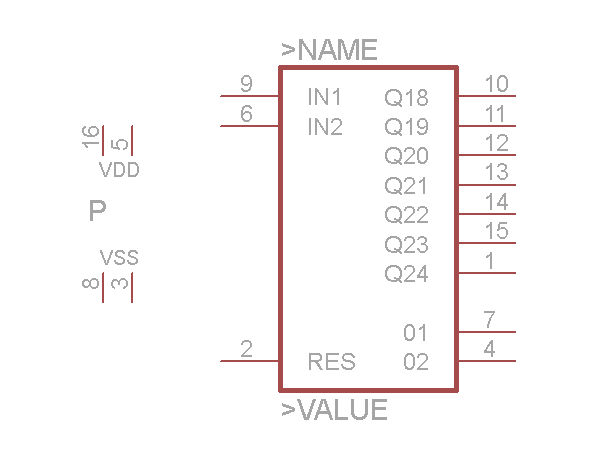

  CD4521: 24-stage FREQUENCY DIVIDER

• CD4522

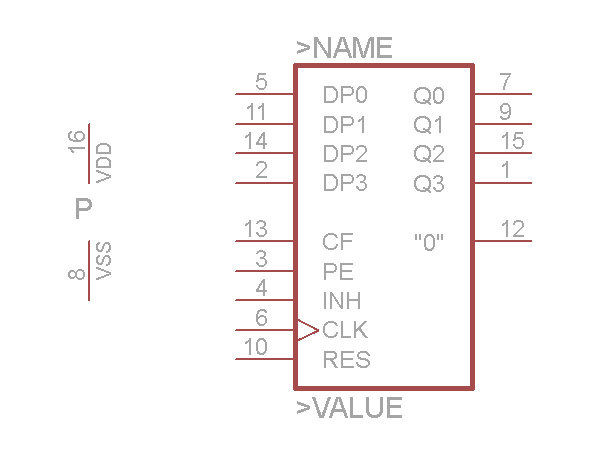

  CD4522: programmable BCD divide by n COUNTER

• CD4526

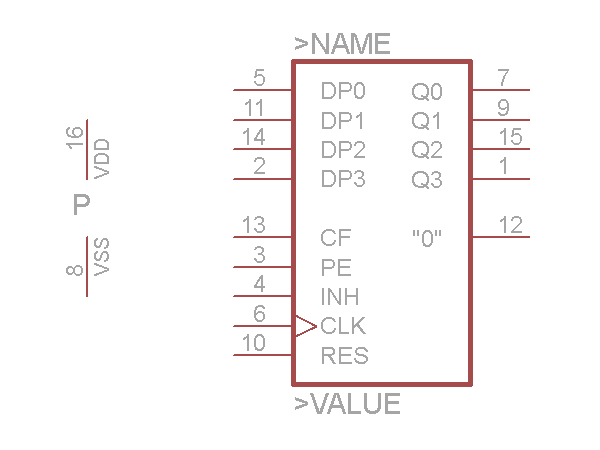

  CD4526: Divide by n binary COUNTER

• CD4527

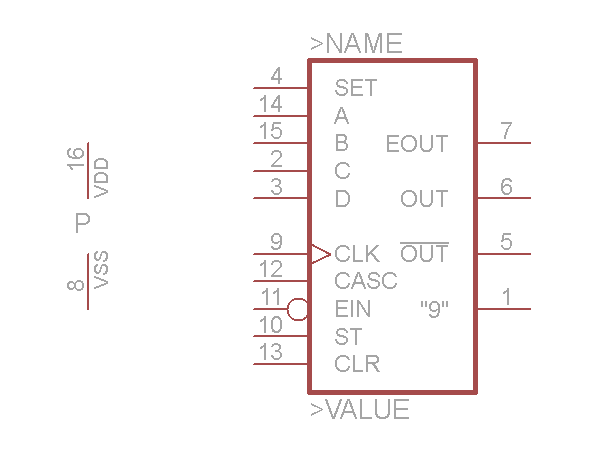

  CD4527: BCD rate MULTIPLIER

• CD4528

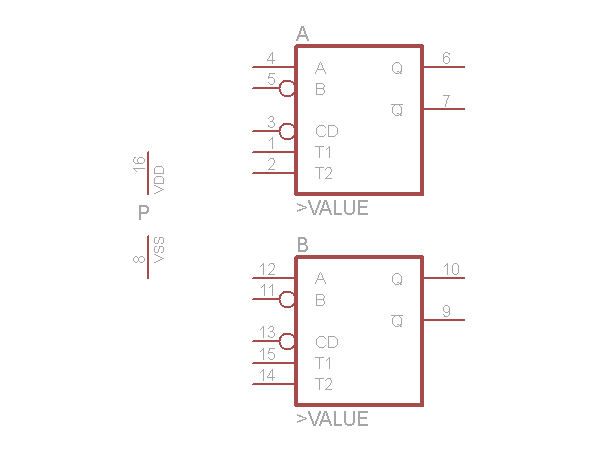

  CD4528: Dual monostable MULTIVIBRATOR

• CD4529

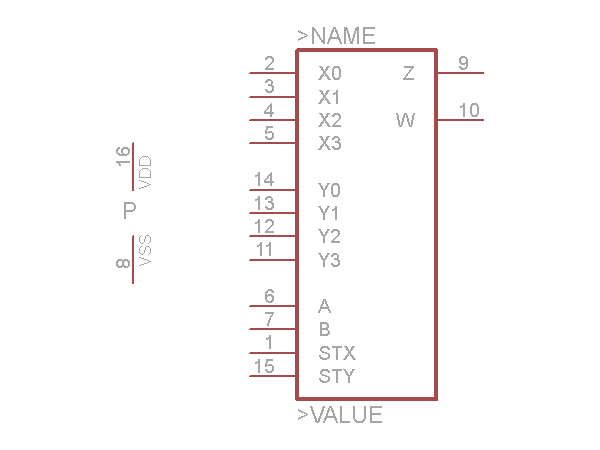

  CD4529: Dual 4-channel analog DATA SELECTOR

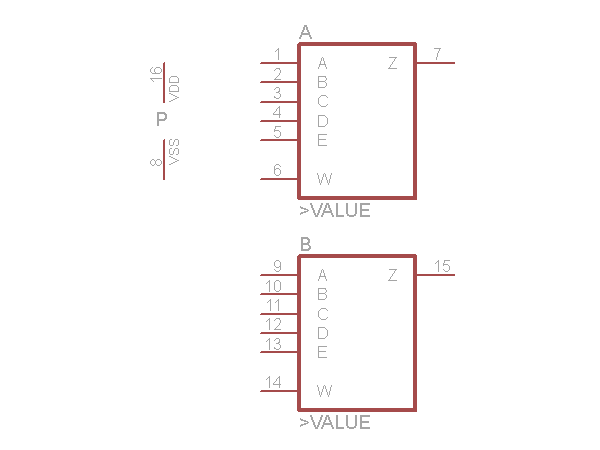

• CD4530



  CD4530: Dual 5-input MAJORITY GATE

• CD4531

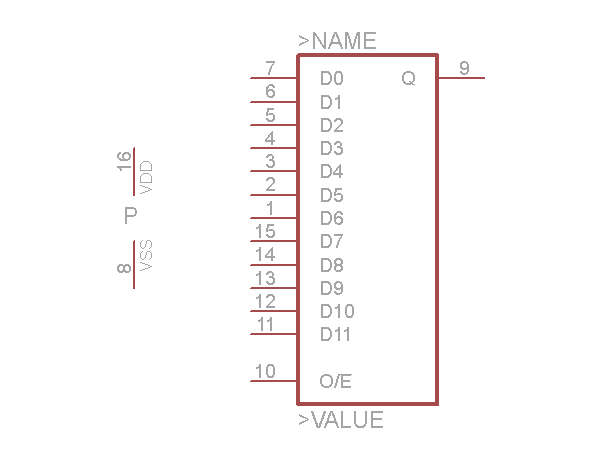

  CD4531: 12-bit PARITY TREE

• CD4532

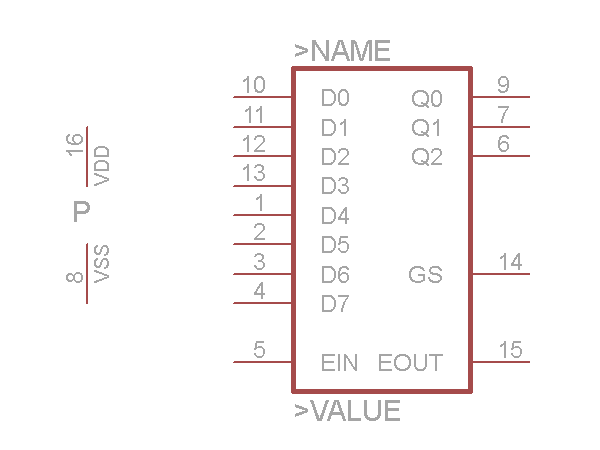

  CD4532: 8-bit PRIORITY ENCODER

• CD4534

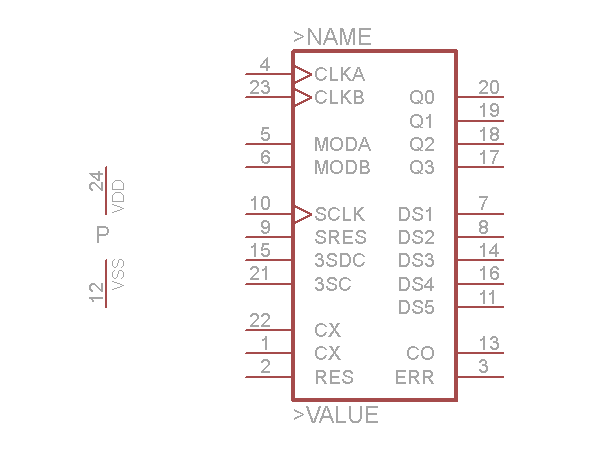

  CD4534: BCD COUNTER

• CD4536

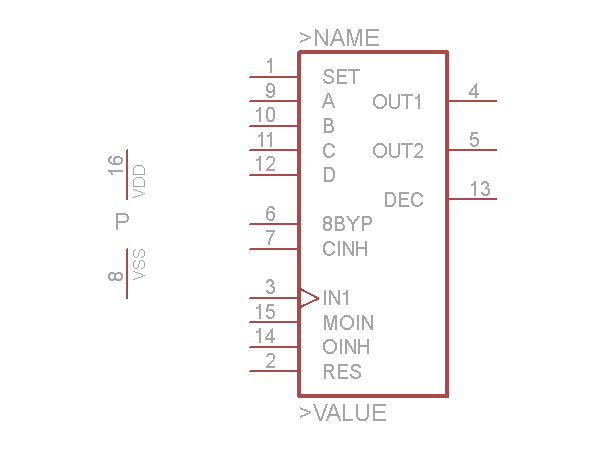

  CD4536: Programmable TIMER

• CD4538

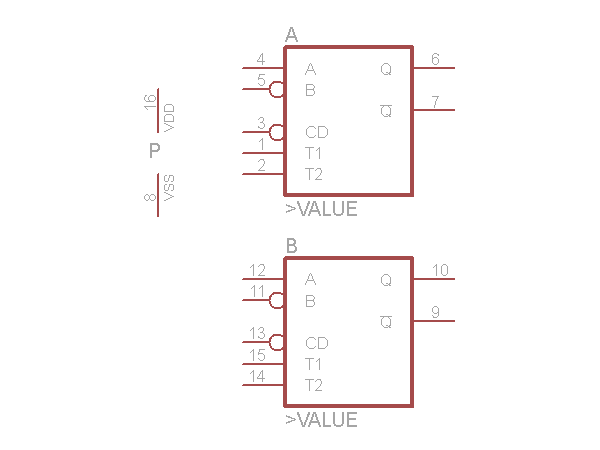

  CD4538: Dual precision monostable MULTIVIBRATOR

• CD4539

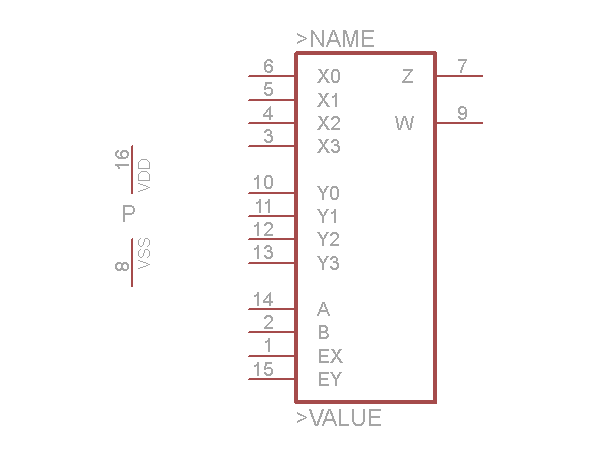

  CD4539: Dual 4-channel DATA SELECTOR / MULTIPLEXER

• CD4541

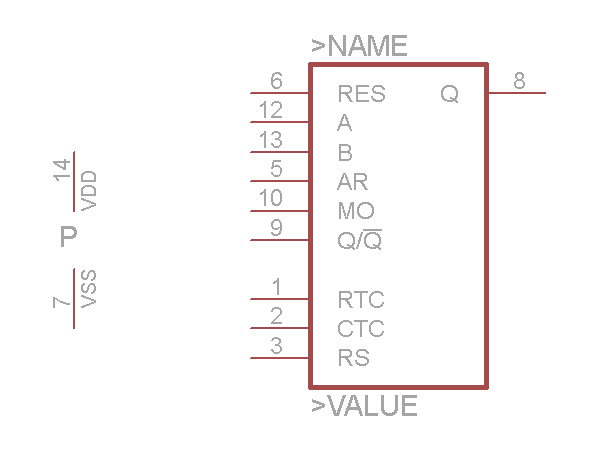

  CD4541: OSCILLATOR / PROGRAMMABLE TIMER

• CD4543

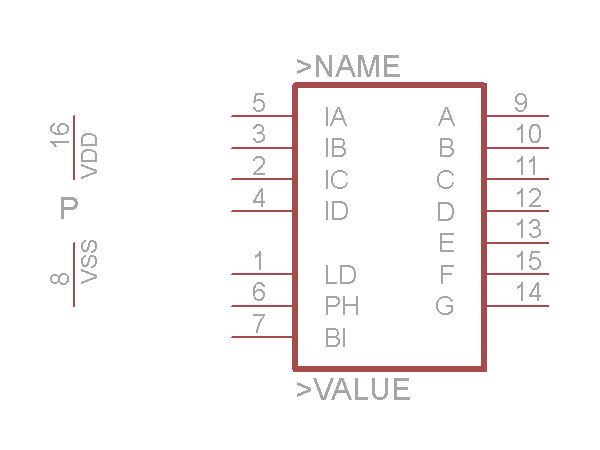

  CD4543: BCD to 7-segment LCD DEODER

• CD4544

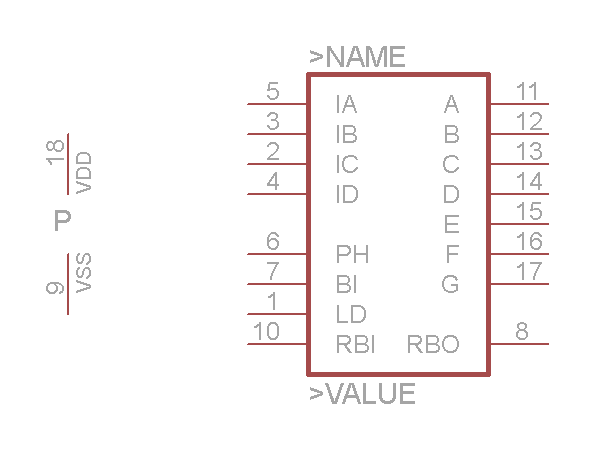

  CD4544: 7-segment DECODER

• CD4547

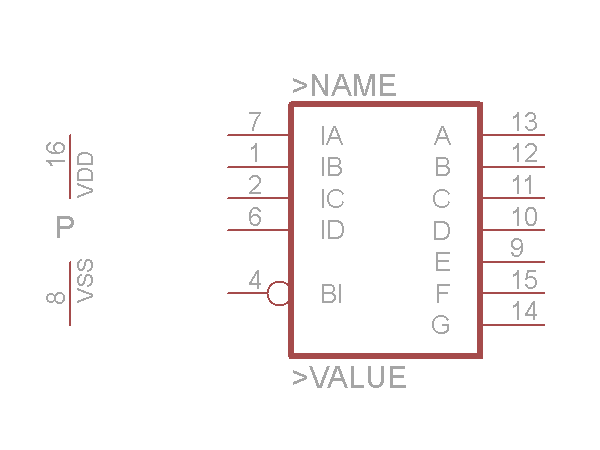

  CD4547: 7-segment DECODER

• CD4549

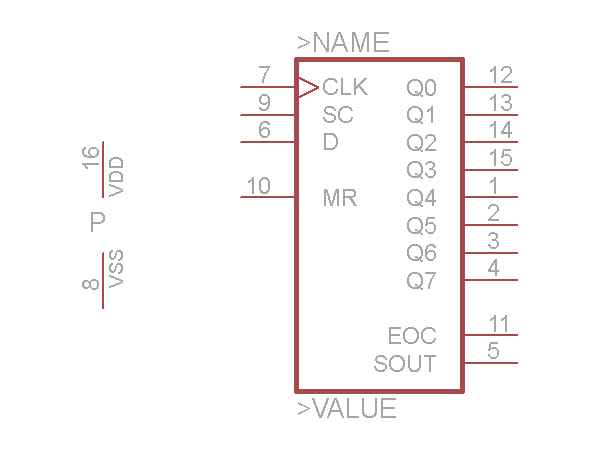

  CD4549: SUCCESSIVE APPROXIMATION REGISTER

• CD4551

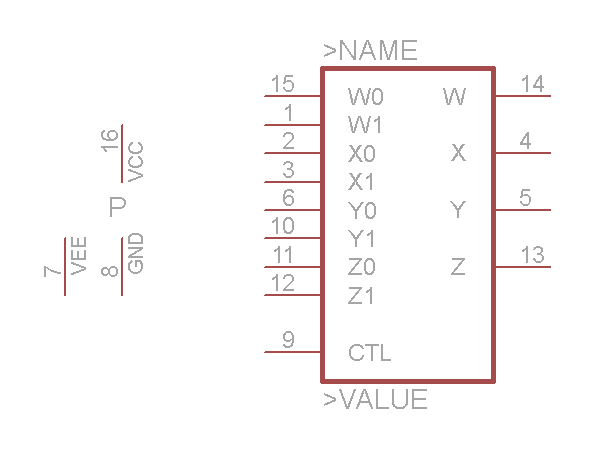

  CD4551: Quad 2-channel analog MULTIPLEXER / DEMULTIPLEXER

• CD4553

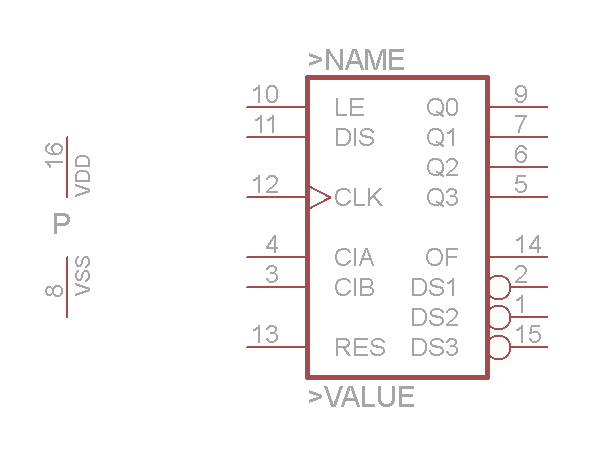

  CD4553: 3-sigit BCD COUNTER

• CD4554

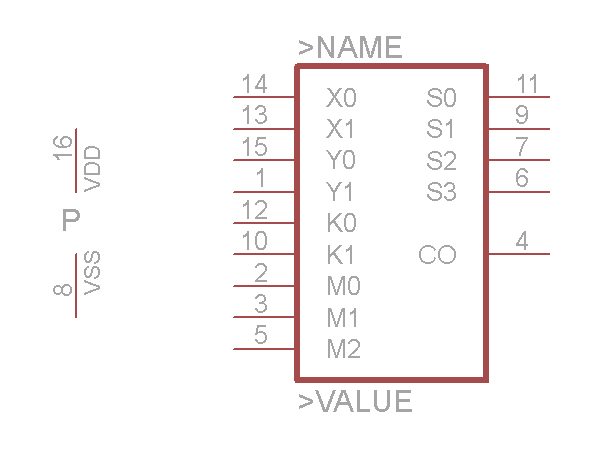

  CD4554: MULTIPLEXER

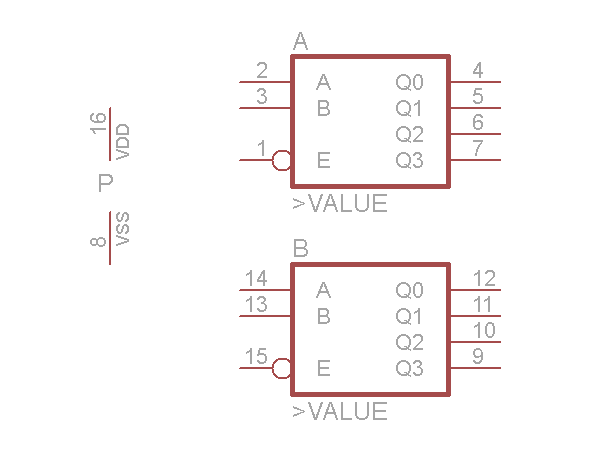

• CD4555



  CD4555: Dual binary 1 of 4 DECODER / DEMULTIPLEXER

• CD4556

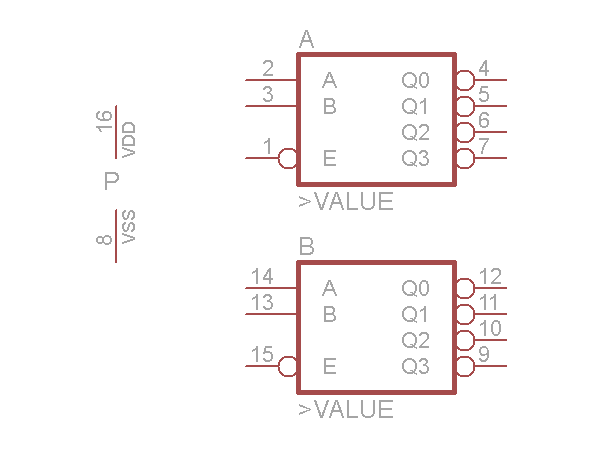

  CD4556: Dual binary 1 of 4 DECODER INVERTER

• CD4557

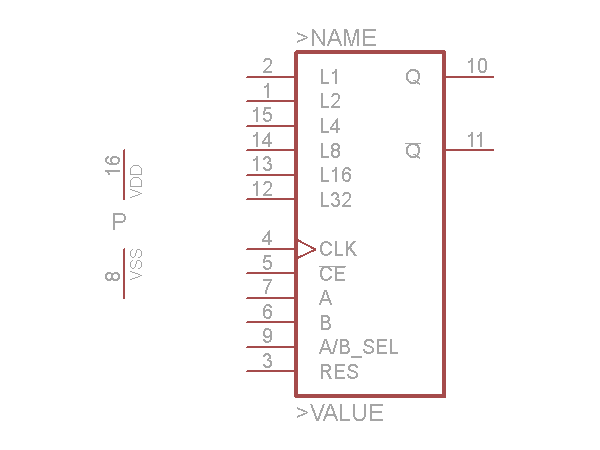

  CD4557: 1 to 64-bit variable length SHIFT REGISTER

• CD4558

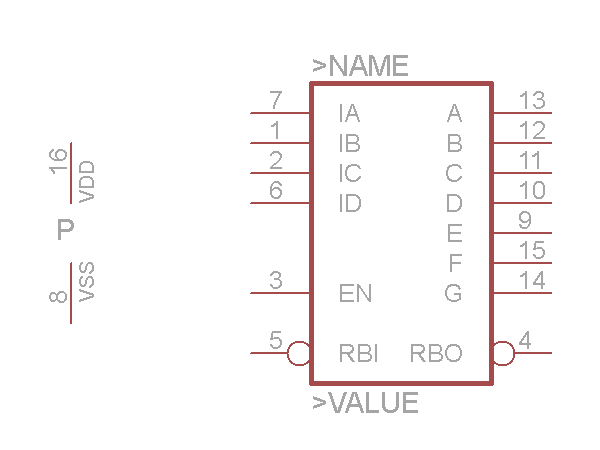

  CD4558: BCD to 7-segment DECODER

• CD4559

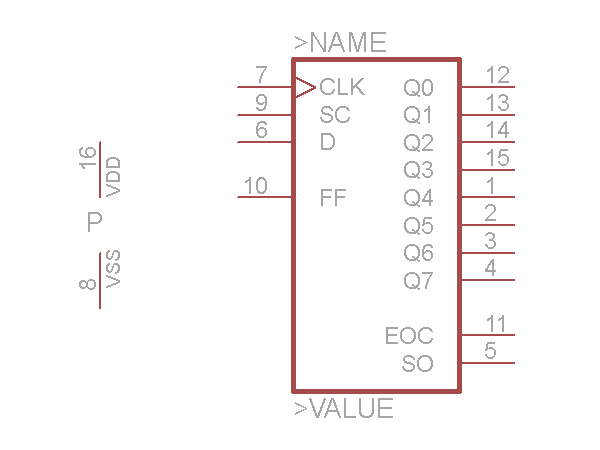

  CD4559: 8-bit SUCCESSIVE APPROXIMATION REGISTER

• CD4560

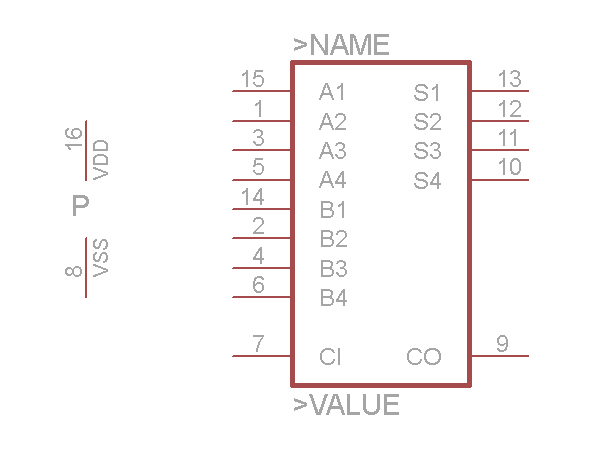

  CD4560: NBCD ADDER

• CD4561

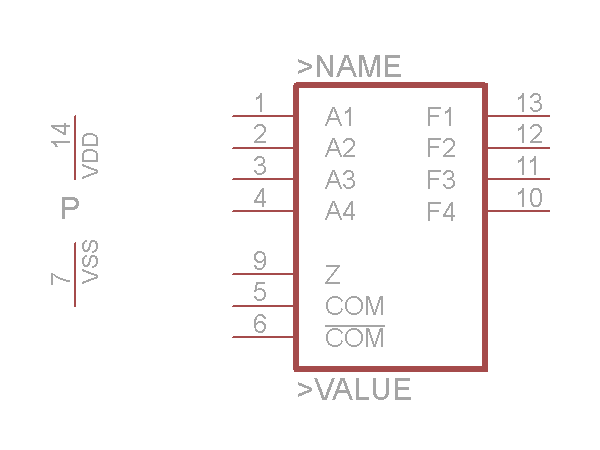

  CD4561: COMPLEMENTER

• CD4562

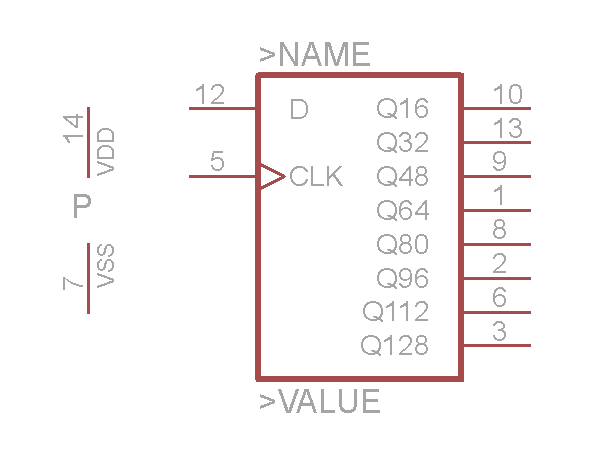

  CD4562: 128-stage static SHIFT REGISTER

• CD4566

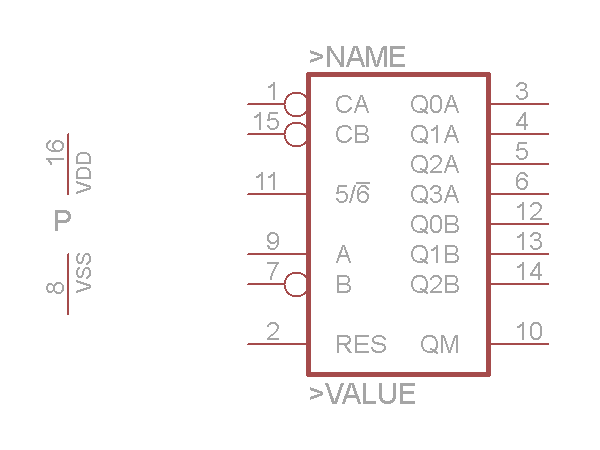

  CD4566: Industrial TIME BASE GENERATOR

• CD4568

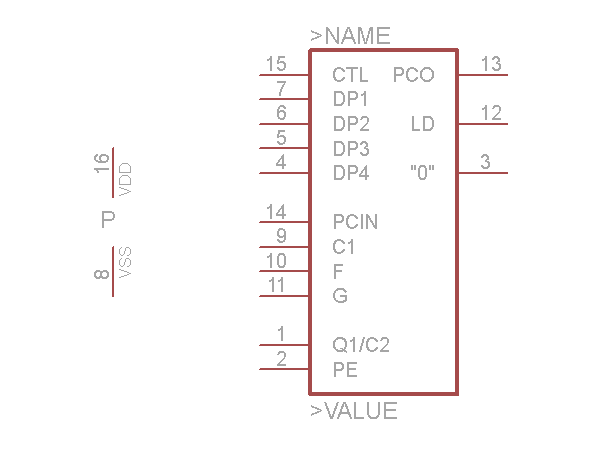

  CD4568: PHASE COMPARATOR / PROGRAMMABLE COUNTER

• CD4569

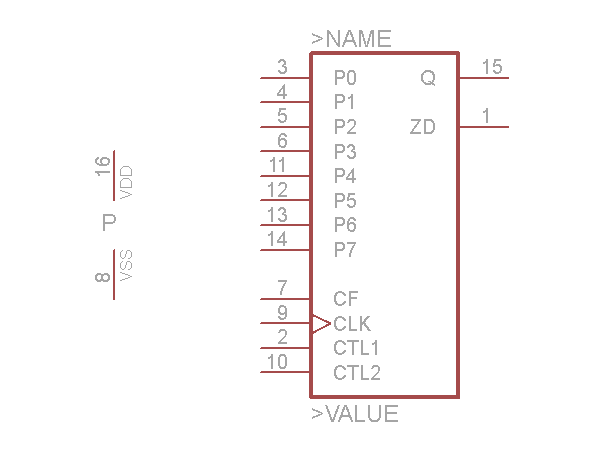

  CD4569: Programmable dual 4-bit binary / BCD down COUNTER

• CD4572

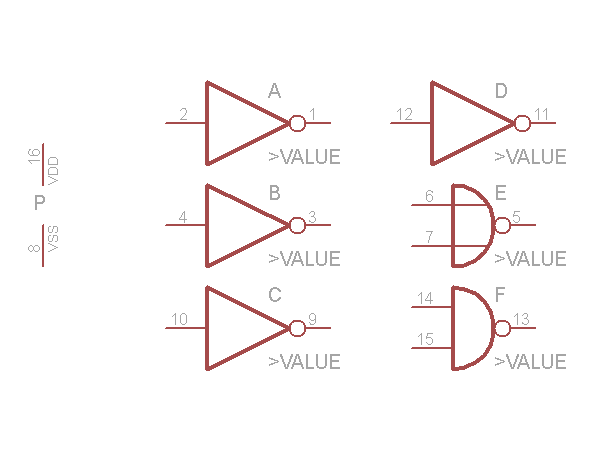

  CD4572: INVERTER / OR / NOR

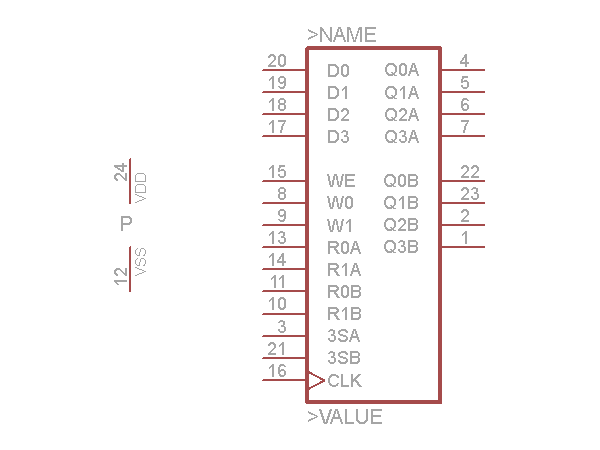

• CD4580



  CD4580: 4 x 4 MULTIPORT REGISTER

• CD4581

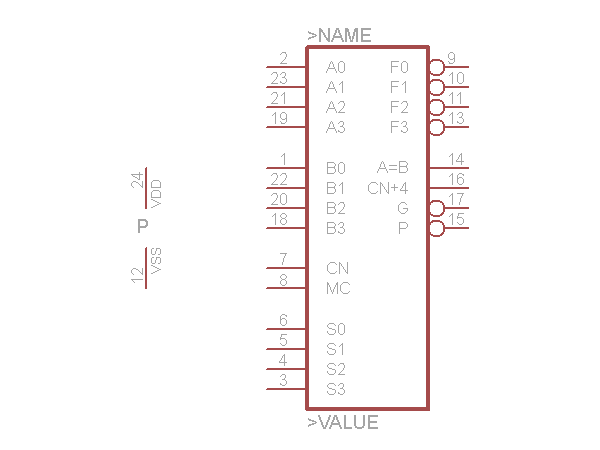

  CD4581: 4-bit ALU

• CD4582

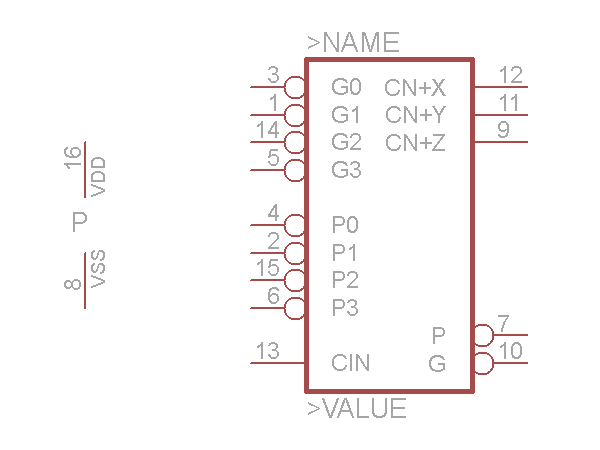

  CD4582: LOOK AHEAD CARRY BLOCK

• CD4583

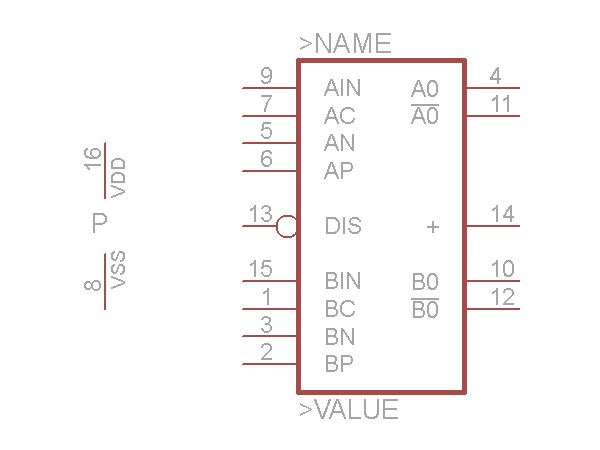

  CD4583: Dual SCHMITT TRIGGER

• CD4584

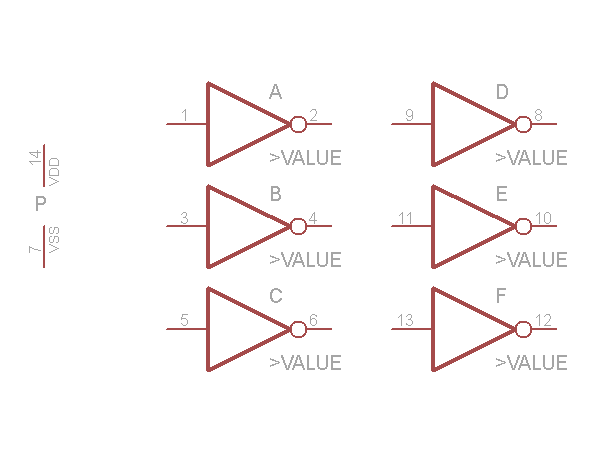

  CD4584: Hex SCHMITT TRIGGER

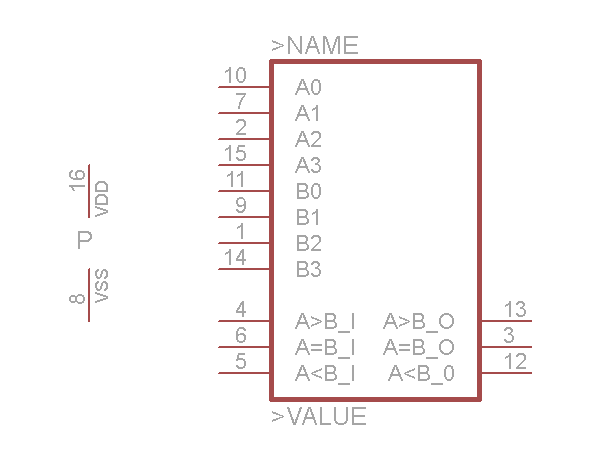

• CD4585



  CD4585: 4-bit COMPARATOR

• CD4597

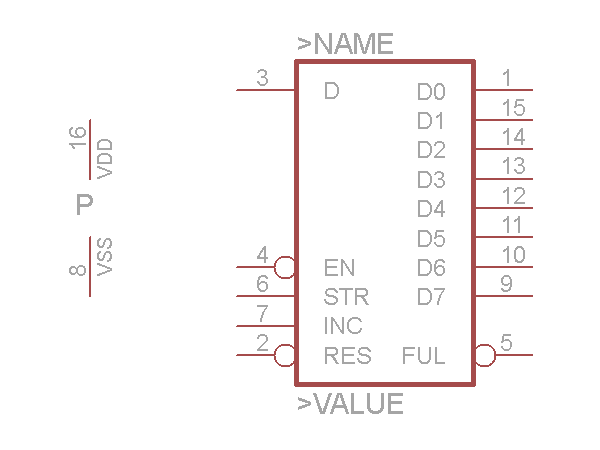

  CD4597: 8-bit bus compatible COUNTER / LATCH

• CD4598

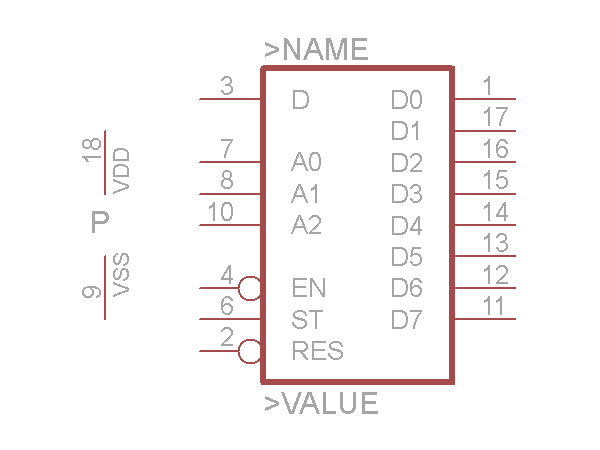

  CD4598: 8-bit bus compatible LATCH

• CD4599

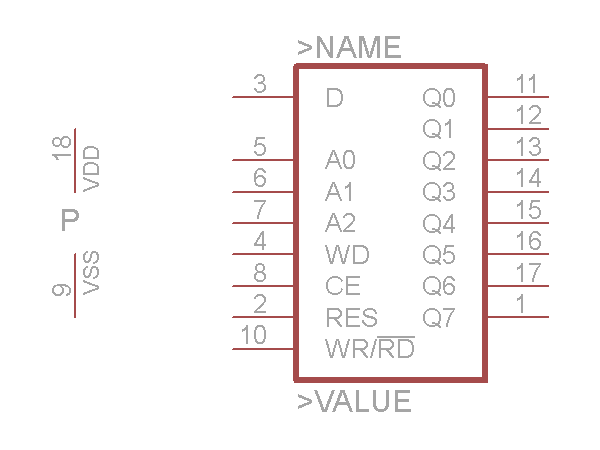

  CD4599: 8-bit addressable LATCH

Hinweis: Sämtliche Bilder entstammen der Layout-Software EAGLE, dessen Copyright © bei der Firma CadSoft liegt. Fehlermeldungen gerne per Email.
